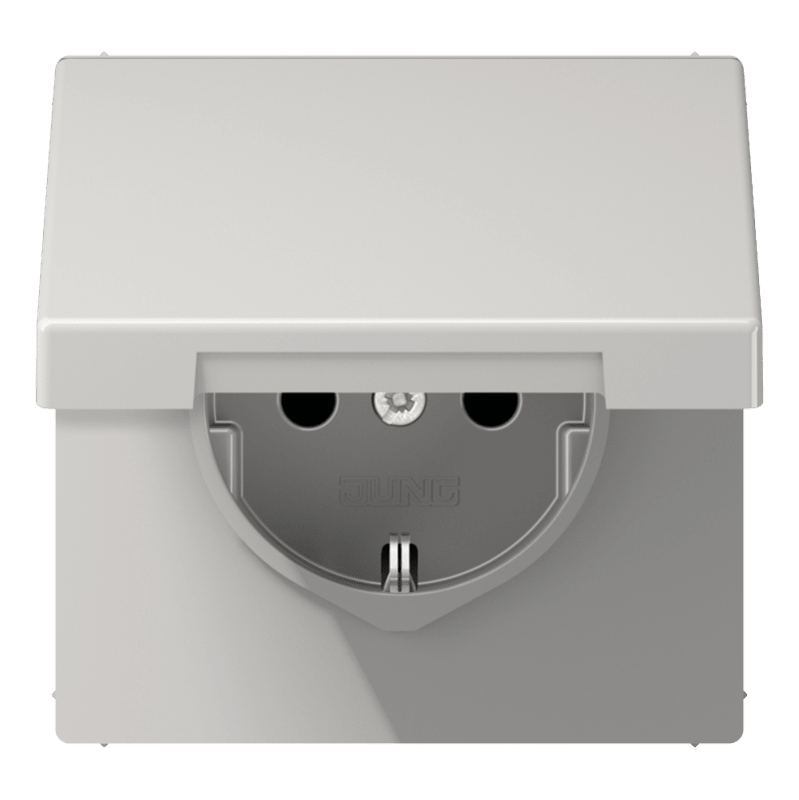

Jung LS1520KLLG SCHUKO Socket 16A 250V Hinged Lid Light Grey LS Range

The Jung LS1520KLLG is a SCHUKO socket from the LS range in glossy light grey, featuring a self-closing hinged lid and screwless spring terminals for fast, tool-free wiring. It is flush-mounted and supplied with a matching light grey decorative frame. The hinged lid protects the socket from dust and accidental contact when not in use.

Technical specifications:

• Part number: LS1520KLLG
• Manufacturer: Jung (Albrecht Jung GmbH)
• Series: LS range
• Type: SCHUKO socket (CEE 7/4, Type F)
• Rated current: 16A
• Rated voltage: 250V AC
• Connection: Screwless spring terminals (conductors up to 2.5mm2)
• Lid type: Self-closing hinged lid with return spring
• Material: Duroplast
• Colour: Glossy light grey (LG)
• IP rating: IP20
• Dimensions: 70mm x 70mm
• Mounting: Flush mount
• Frame: Included

Features and benefits:

• Screwless spring terminals allow fast installation without a screwdriver
• Self-closing hinged lid protects against dust ingress and accidental contact
• Duroplast construction provides higher impact resistance than standard thermoplastic
• Part of the LS range - compatible with LS switches, dimmers, and accessories for a coordinated installation

Applications:

• Living rooms, bedrooms, and hallways in residential buildings
• Office and commercial spaces requiring a light grey coordinated appearance
• Hotel rooms and hospitality installations
• Matching with LS range light grey switches for unified room aesthetics

Compliant with DIN VDE 0620 and IEC 60884.

Also known as: Jung LS1520KLLG, Jung SCHUKO socket light grey, Jung LS socket hinged lid grey, Jung 16A socket LS range light grey, SCHUKO outlet hinged cover light grey
