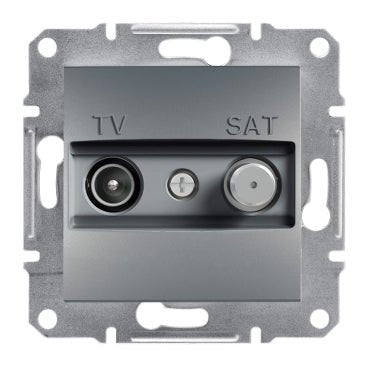

Schneider EPH3400162 Asfora TV-SAT Ending Socket 1dB, Steel

The Schneider Electric EPH3400162 is a TV-SAT terminating socket from the Asfora range, designed as the end-of-line outlet in serial and parallel antenna distribution systems. It provides 1 dB attenuation and combines a male IEC 9.52 mm TV connector with an F-type SAT connector, supplied without a decorative frame in a painted steel finish.

Technical specifications:

• Commercial reference: EPH3400162
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: TV/SAT socket
• Socket type: Line termination (end socket)
• Compatible systems: Series distribution systems, parallel distribution systems
• Number of sockets: 2
• TV connector: Male IEC 9.52 mm
• SAT connector: F-type
• Attenuation: 1 dB
• DC current: Present in SAT connector
• Number per line: 1
• Connection terminals: Screwless
• Conductive material: Copper
• Central plate material: ABS (acrylonitrile-butadiene-styrene)
• Color: Steel, painted
• Mounting: Flush-mounted
• Fixing method: By claws, 51...80 mm
• Width: 71 mm
• Height: 71 mm
• Depth: 42 mm
• Projected depth: 13 mm
• Weight: 0.105 kg
• IP protection rating: IP20
• Certifications: CE

Features and benefits:

• End-of-line termination for both series and parallel coaxial distribution networks
• Dual connectivity combining a male IEC 9.52 mm TV port and an F-type SAT port in a single mechanism
• DC current pass-through capability on the SAT connector supports powered antenna systems
• Screwless terminals enable fast, tool-free wiring
• Claw fixing compatible with wall depths of 51 to 80 mm for versatile installation
• Sold without frame, allowing integration with any compatible Asfora cover plate

Applications:

• Final TV and satellite outlet in residential serial antenna distribution systems
• End socket in parallel coaxial networks for apartments and houses
• Last connection point in multi-room TV/SAT installations
• Flush wall outlet in living rooms, bedrooms, and media spaces

Certified CE. Part of the Schneider Electric Asfora range.

Also known as: Schneider EPH3400162, Schneider Electric EPH3400162, TV-SAT end socket, TV-SAT terminating outlet.
