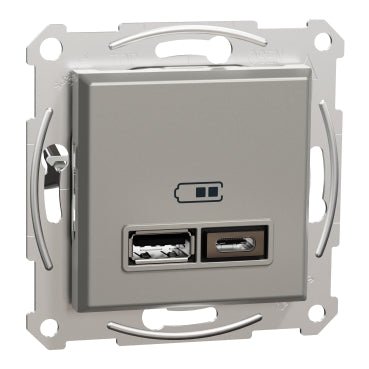

Schneider EPH2700569 Asfora Double USB Charger type A+C 21W, Bronze

The Schneider Electric EPH2700569 is a dual USB charger from the Asfora range, offering both USB Type-A and USB Type-C ports with a combined rated output power of 21W. Designed for flush-mounted wall installation with a mounting frame, it delivers Power Delivery charging in a bronze glossy finish that integrates seamlessly with Asfora series wiring accessories. The charger supports multiple voltage and current profiles, providing up to 21W on the Type-C port alone.

Technical specifications:

• Commercial reference: EPH2700569
• Manufacturer: Schneider Electric
• Series / range: Asfora
• Product type: USB charger
• Device presentation: Mechanism with mounting frame
• Installation: Flush-mounted
• USB port types: USB Type-A + USB Type-C
• Rated input voltage: 220...240V AC +/- 10% at 50/60Hz
• Rated output power: 21W
• Output current per port: 3A
• USB Type-A output: 5V DC, max 3A
• USB Type-C output: up to 20V DC, max 3A
• Load type: Power Delivery
• Standby power consumption: 0.05W
• Terminal capacity: 2x 0.75...2x 2.5mm² (solid, flexible, and multi-strand cables)
• Wire stripping length: 8mm
• Number of terminals: 2 screw terminals
• Fixing method: Screws without nut
• Width: 71mm
• Height: 71mm
• Depth: 42mm
• Installation depth: 32mm
• Weight: 0.13kg
• IK rating: IK02
• Electrical insulation class: Class II
• Operating temperature: 0...40°C
• Storage temperature: -5...50°C
• Housing material: PC GF10 FR; center plate: ABS
• Service life: 30,000 hours
• Color / finish: Bronze, glossy
• Standard: ETSI EN 301 489-4

Features and benefits:

• Simultaneous dual-port charging with 21W total output for faster top-ups
• USB-C Power Delivery profiles up to 21W (9V/2.3A or 12V/1.75A)
• Built-in overload, short-circuit, output overvoltage, and overtemperature protection
• Class II insulation - no protective earth connection required
• Flush-mounted mechanism with frame for a clean, integrated wall installation
• Compatible with smartphones, tablets, power banks, digital cameras, and laptop accessories

Applications:

• Residential bedroom and living room dedicated USB charging points
• Hotel room and hospitality suite USB charging installations
• Office workstation and meeting room device charging outlets
• Home renovation projects replacing standard sockets with USB-enabled units
• Smart home and building automation wall accessory installations

Compliant with ETSI EN 301 489-4. Part of the Schneider Electric Asfora range.

Also known as: Schneider EPH2700569, Schneider Electric EPH2700569, Asfora USB wall charger, dual USB Type-A Type-C flush mount charger.
