Schneider EPH0300162 Asfora 1-Pole 2-Gang Switch 10AX Screwless Steel Insert

Overview

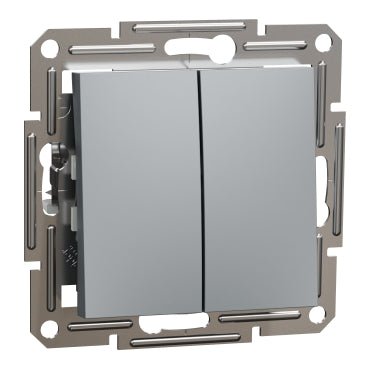

The Schneider Electric EPH0300162 is an Asfora double switch insert in steel finish: two 1-pole 1-way rocker switches in one device controlling two independent circuits from one wall position. Supplied as a mechanism with fixing frame and rocker cover plates (no decorative outer frame); pair it with a separately ordered Asfora decorative frame to complete the installation. Screwless push-in terminals; rated 10 AX at 250 V AC.

Key Specifications

• Range: Asfora
• Type: Double wall switch insert (1-pole 2-circuits / 2-gang)
• Number of rockers: 2
• Switch function (each rocker): 1-pole 1-way
• Presentation: Mechanism with fixing frame and cover plate (decorative outer frame not included)
• Actuator: Rocker, flush mounting
• Rated current: 10 AX at 250 V AC
• Rated voltage [Ue]: 230 V
• Power range: 2300 W
• Energy-saving lamp load (with ballast): up to 100 W
• Terminals: Screwless push-in, 2 x 2.5 mm² (rigid / flexible / solid stranded), 13 mm strip
• Conductor material: Copper
• Fixing: Screws or claws, 51...70 mm centres
• Material: ABS, matt, lacquered
• Colour: Steel
• Dimensions: 71 x 71 x 43 mm (H x W x D), projecting depth 15 mm
• Weight: 60.5 g
• IP20 / IK02; operating temperature -5...40 °C
• Standards: IEC 60669-1; certifications TSE, VDE, NF; CE, UKR labels
• Warranty: 18 months

Typical Applications

• Two-circuit lighting control from a single wall position
• Modern interiors using the Asfora steel finish, where the decorative frame is selected separately to match the rest of the wiring devices

Compliance

IEC 60669-1. CE marked. Schneider Electric Asfora wiring devices range.
