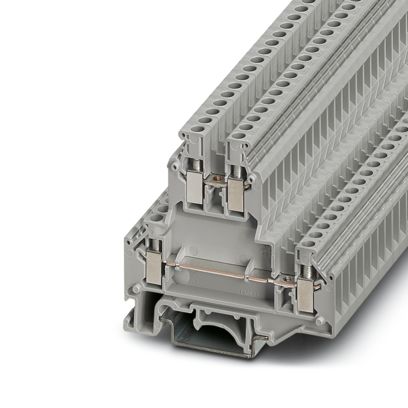

Phoenix Contact 2771146 UKKB 5 Double-level terminal block 32A

The UKKB 5 is a double-level terminal block from Phoenix Contact's UK product family, combining two independent wiring levels into a compact 6.2 mm wide body. Rated at 500 V and 32 A, it accepts conductors from 0.2 mm² to 4 mm² via screw connection on both levels, enabling space-efficient two-circuit routing within a single terminal position.

Technical specifications:

• Part designation: UKKB 5
• Catalog number: 2771146
• Manufacturer: Phoenix Contact
• EAN: 4017918068226
• Nominal voltage: 500 V
• Nominal current: 32 A
• Connection method: Screw connection, 1st and 2nd level
• Rated cross section: 4 mm²
• Conductor cross section (rigid/flexible): 0.2 mm² - 4 mm²
• Conductor cross section: AWG 24 to 12
• Number of connections: 4 (2 per level)
• Number of rows: 2
• Screw thread: M3, tightening torque 0.6 - 0.8 Nm
• Stripping length: 8 mm
• Mounting type: NS 35/7.5, NS 35/15, NS 32
• Dimensions: W 6.2 mm x H 67 mm x D 62 mm (on NS 35/7.5)
• Color: gray (RAL 7042)
• Insulating material: PA, group I
• Flammability rating: UL 94 V0
• Rated surge voltage: 6 kV, overvoltage category III
• Operating temperature: -60 °C to 110 °C
• Weight (excl. packing): 16.27 g
• Pack size: 50 pc
• Country of origin: CN
• Approvals: CSA, cUL Recognized, cULus Recognized, IECEE CB Scheme, EAC, KEMA-KEUR

Features and benefits:

• Double-level design routes two independent circuits through a single 6.2 mm wide terminal, maximising DIN rail density
• Large-surface labeling option supports clear circuit identification
• Wide conductor range 0.2 mm² to 4 mm² accommodates both signal and power conductors on the same rail
• Compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails for installation flexibility
• UL 94 V0 rated PA insulation with DIN EN 45545-2 fire protection approval for rail vehicle environments

Applications:

• Control cabinet wiring where panel space is at a premium
• Industrial machinery and automation panel builds
• Building installation distribution boards requiring dual-circuit terminals
• Railway and transportation equipment (DIN EN 45545-2 R22-R26 HL 1 - HL 3 compliant)
• Power and signal distribution in industrial control systems

Compliant with IEC 60947-7-1 for terminal block connections. Part of the Phoenix Contact UK terminal block family.

Also known as: Phoenix Contact UKKB 5, Phoenix 2771146, Phoenix Contact double-level terminal block 4mm2.
