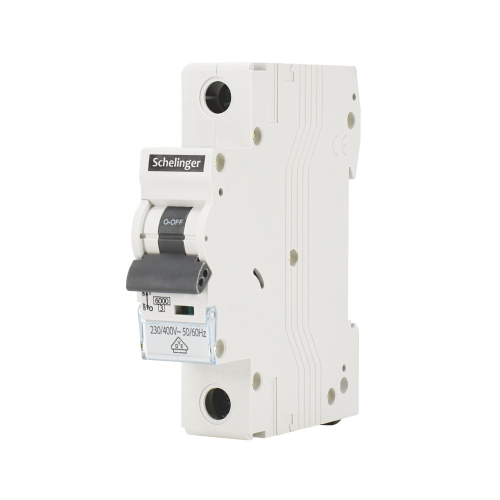

Schelinger A02-G8-1P-B16 MCB 1P B Curve 16A 6kA 230V VDE DIN Rail
Free Shipping
Get free shipping on orders exceeding €300!
The Schelinger A02-G8-1P-B16 is a 1-pole miniature circuit breaker (MCB) from the G8 series, providing overcurrent and short-circuit protection for final circuits in residential and light commercial installations. VDE certified, 6kA breaking capacity.
Technical specifications:
- Part number: A02-G8-1P-B16
- Manufacturer: Schelinger
- Series: G8
- Poles: 1P
- Rated current (In): 16A
- Tripping curve: B (suitable for resistive loads, cables and transformer protection)
- Short-circuit breaking capacity (Icn): 6kA
- Rated voltage: 230/400V AC, 50/60Hz
- Impulse withstand voltage (Uimp): 4kV
- IP rating: IP20
- Width: 17.5mm (1 module)
- Mounting: DIN rail
- Certification: VDE
Applications:
- Final circuit protection in residential consumer units and distribution boards
- Cable and wiring protection in lighting and socket circuits
- Protection of resistive heating and low-inrush loads
- Light commercial and industrial panel protection
Compliant with EN/IEC 60898-1. VDE certified.
Also known as: Schelinger A02-G8-1P-B16, MCB 1P B16 6kA, miniature circuit breaker B16 1 pole, circuit breaker 16A B curve VDE, Schelinger G8 B16.
When sold out, you can still preorder by requesting a quote below.
