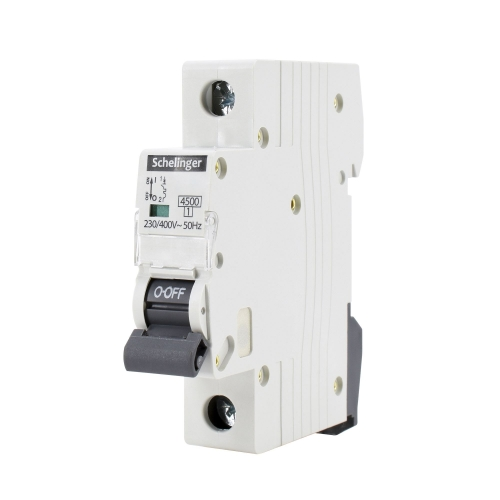

Schelinger G7-1P-B06 A02-G7-1P-B06 Schelinger Overcurrent Circuit Breaker 1P B6
Free Shipping
Get free shipping on orders exceeding €300!
The Schelinger G7-1P-B06 is a miniature circuit breaker (MCB) for DIN rail mounting. It provides overload and short-circuit protection in residential and commercial distribution boards. A02-G7-1P-B06 Schelinger Overcurrent Circuit Breaker 1P B6A
Technical specifications:
- Part number: G7-1P-B06
- Manufacturer: Schelinger
- Type: Miniature circuit breaker (MCB)
- Poles: 1P
- Rated current: 6A
- Trip curve:
- Breaking capacity: 6kA
- Voltage: 230/400V AC
- DIN rail: 35mm TS-35
- Standards: IEC/EN 60898-1
Features and benefits:
- Reliable thermal-magnetic trip mechanism for both overload and short-circuit protection
- 6kA breaking capacity suitable for residential and commercial installations
- Compact DIN rail format for installation in standard distribution boards
- Manual on/off switching provides local circuit isolation
Applications:
- Consumer unit and distribution board circuit protection
- Lighting, socket, and general distribution circuit protection
- Residential and light commercial installations
- Replacement for 6A -curve MCBs on 35mm DIN rail
Compliant with IEC/EN 60898-1.
Also known as: Schelinger G7-1P-B06, Schelinger 1P 6A -curve MCB, Schelinger MCB 6A, Schelinger circuit breaker G7-1P-B06.
