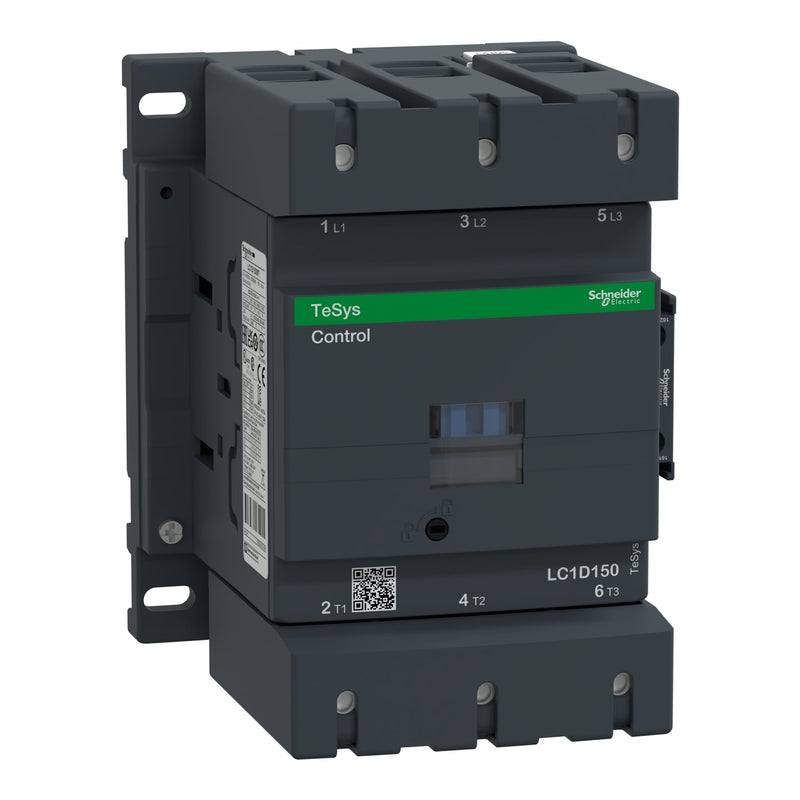

Schneider LC1D150P7 TeSys Deca Contactor 3P 150 A 440V 230V AC 50/60Hz Coil

The Schneider Electric LC1D150P7 is a 3-pole TeSys Deca contactor rated at 150 A (AC-3) at up to 440 V AC, with a 230 V AC 50/60 Hz control coil. Designed for motor control and resistive load switching, it is capable of handling three-phase motors up to 75 kW at 380-400 V or 100 kW at 660-690 V AC.

Technical specifications:

• Commercial reference: LC1D150P7
• Manufacturer: Schneider Electric
• EAN:
• Series / range: TeSys Deca (TeSys D)
• Product type: Contactor
• Number of poles: 3P (3 NO)
• Rated current [Ie]: 150 A at ≤ 440 V AC (AC-3); 200 A at ≤ 440 V AC (AC-1)
• Thermal current [Ith]: 200 A at 60°C
• Rated voltage [Ue]: ≤ 1000 V AC 25-400 Hz; ≤ 300 V DC
• Control circuit voltage [Uc]: 230 V AC 50/60 Hz
• Usage categories: AC-1, AC-3, AC-3e, AC-4
• Rated insulation voltage [Ui]: 1000 V (IEC 60947-4-1); 600 V (UL/CSA)
• Rated impulse withstand voltage [Uimp]: 8 kV (IEC 60947)
• Breaking capacity: 1400 A at 440 V (IEC 60947)
• Short-time withstand current [Icw]: 1400 A at 40°C - 1 s
• Auxiliary contacts: 1 NO + 1 NC
• Operating time: 20-35 ms closing; 40-75 ms opening
• Maximum operating rate: 1200 cycles/h at 60°C
• Mechanical durability: 8 million cycles
• Electrical durability: 0.85 million cycles (AC-3, 150 A at ≤ 440 V)
• Power circuit connection: screw terminal, 10-120 mm² (terminal 1); 10-50 mm² (terminal 2)
• Control circuit connection: screw terminal, 1-2.5 mm²
• Overvoltage category: III; Pollution degree: 3

Features and benefits:

• Integrated bidirectional coil limiter for reduced holding power consumption (2-18 VA)
• High mechanical durability of 8 million operating cycles
• Supports fuse coordination type 1 (315 A gG) and type 2 (250 A gG) at ≤ 690 V
• Wide power circuit wiring flexibility: accepts 10-120 mm² on terminal 1
• LC1D series accessory compatible for extended functionality

Applications:

• Motor control in industrial automation and manufacturing
• Switching three-phase motors up to 100 kW in process industries
• Resistive load switching in HVAC and building management systems
• Direct-on-line and reversing starter assemblies in motor control centers

Compliant with IEC 60947-4-1 and IEC 60947-5-1, UL and CSA certified. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider LC1D150P7, Schneider Electric LC1D150P7, TeSys D 150A contactor, 3-pole motor contactor 230V coil.
