WAGO 2216-7692 End and Intermediate Plate 1mm Orange Set of 20

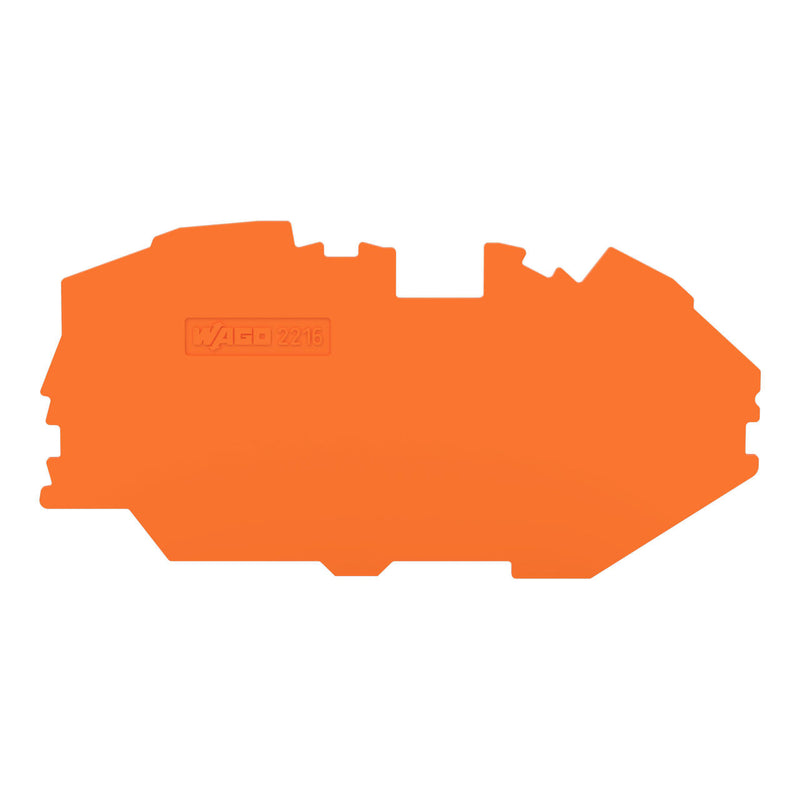

The WAGO 2216-7692 is an end and intermediate plate designed for use with TOPJOB S 2216 Series installation rail-mount terminal blocks. At 1 mm thick and molded in orange polyamide (PA66), it provides clear visual separation and end protection for terminal block groups on a DIN rail. The snap-on mounting type allows tool-free placement within the assembly.

Technical specifications:

• Catalog number: 2216-7692
• Manufacturer: WAGO
• Series: TOPJOB S 2216 Series
• Product type: End and intermediate plate
• Color: orange
• Width: 1 mm / 0.039 in
• Height: 84.5 mm / 3.327 in
• Depth: 41.7 mm / 1.642 in
• Mounting type: snap-on type
• Insulation material: Polyamide (PA66)
• Material group: I
• Flammability class: V0 per UL94
• Fire load: 0.09 MJ
• Weight: 3.3 g
• Pack quantity: 20 pcs (Box)
• Country of origin: Germany (DE)
• GTIN: 4066966499094
• RoHS: Compliant, No Exemption

Features and benefits:

• Snap-on mounting enables fast, tool-free installation alongside 2216 Series terminal blocks on the DIN rail
• 1 mm thin profile adds minimal width to the assembly while clearly separating adjacent terminal block groups
• Orange polyamide (PA66) housing rated V0 per UL94 for fire resistance in enclosed panels
• Orange color provides immediate visual identification of zone or circuit boundaries
• RoHS compliant with no exemptions, suitable for environmentally regulated installations

Applications:

• Separating functional groups within WAGO 2216 Series TOPJOB S terminal block rows on a DIN rail
• End-terminating a terminal block assembly to protect contacts at the row boundary
• Marking circuit boundaries in electrical panels and installation control cabinets
• Use wherever UL94 V0 rated insulation is required alongside 2216 Series TOPJOB S blocks

Also known as: WAGO 2216-7692, WAGO end plate 2216 Series, TOPJOB S intermediate plate orange.
