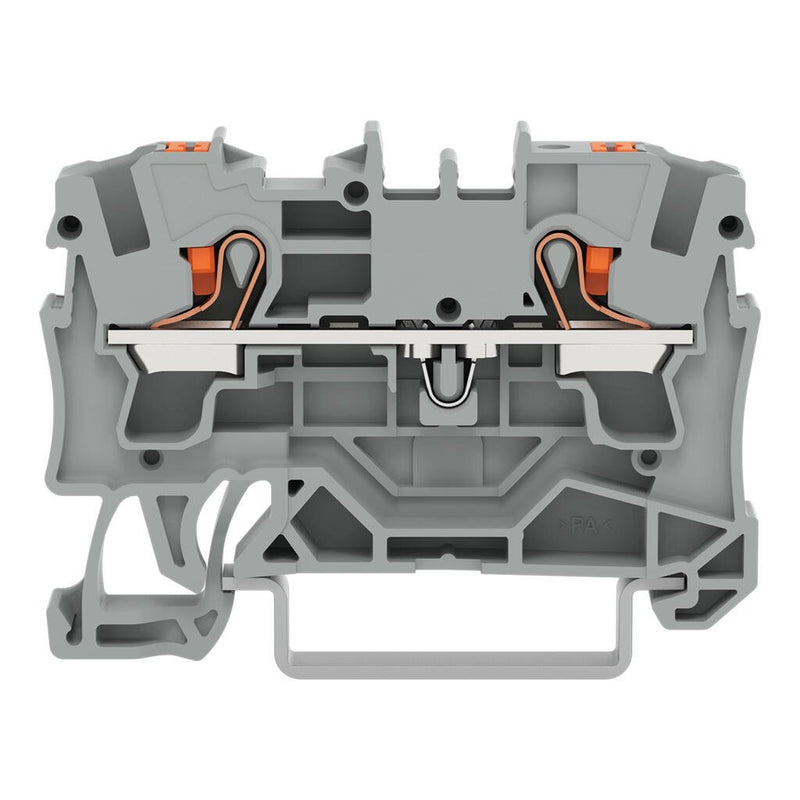

WAGO 2204-1201 TOPJOB S 2-Conductor Through Terminal Block 4 mm² Gray

The WAGO 2204-1201 is a 2-conductor through rail-mount terminal block from the TOPJOB S 2204 Series, rated 32 A and 800 V per IEC/EN 60947-7-1. It accepts solid and fine-stranded copper conductors from 0.5 to 6 mm² via Push-in CAGE CLAMP technology operated by push-button, with an integrated test port and Ex e II certification for use in hazardous areas (ATEX PTB 18 ATEX 1006 U / IECEx PTB 18.0013U, Ex eb IIC Gb).

Technical specifications:

• Catalog number: 2204-1201
• Manufacturer: WAGO
• Series: TOPJOB S, 2204 Series
• Type: 2-conductor through rail-mount terminal block
• Connection technology: Push-in CAGE CLAMP, push-button actuation, front-entry wiring
• Nominal cross-section: 4 mm²; conductor range: 0.5 ... 6 mm² (20 ... 10 AWG); strip length: 11 ... 13 mm
• Rated voltage (IEC/EN 60947-7-1): 800 V; rated current: 32 A; impulse withstand voltage: 8 kV; overvoltage category III; pollution degree 3
• Rated voltage (UL 1059 / CSA 22.2 No. 158, groups B/C): 600 V; rated current: 30 A
• Ex e II (ATEX / IECEx): rated voltage 550 V; rated current 31 A (30 A with jumper)
• Clamping units: 2; jumper slots: 2; total potentials: 1; mounting: DIN-rail 35 × 15 and 35 × 7.5
• Dimensions (W × H × D): 6.2 × 52.3 × 39.5 mm; weight: 7.1 g
• Insulation material: Polyamide (PA66); flammability: UL94 V0; housing color: gray; actuator color: orange
• Continuous operating temperature: -60 ... +105 °C; processing temperature: -35 ... +85 °C
• Certifications: IEC/EN 60947-7-1, UL 1059, CSA 22.2 No. 158, ATEX PTB 18 ATEX 1006 U, IECEx PTB 18.0013U, DIN EN 50155, DIN EN 61373

Features and benefits:

• Push-in CAGE CLAMP accepts solid and fine-stranded conductors with or without ferrules directly into the clamping point, without tools
• Integrated test port permits in-circuit measurement without disconnecting conductors
• Approved for Ex e II hazardous-area installations and validated per DIN EN 50155 / DIN EN 61373 for railway rolling stock
• Center and side marking positions allow flexible circuit identification directly on the terminal block

Applications:

• Through-wiring and potential distribution in industrial control panels
• Building installation enclosures where tool-free connections reduce wiring time
• Hazardous-area (Ex Zone 1/2) junction boxes requiring Ex e II certified terminal blocks
• Railway rolling stock control systems qualified to DIN EN 50155 and DIN EN 61373

Also known as: WAGO 2204-1201, WAGO TOPJOB S through terminal block 4 mm², WAGO 2204 push-button terminal with test port.
