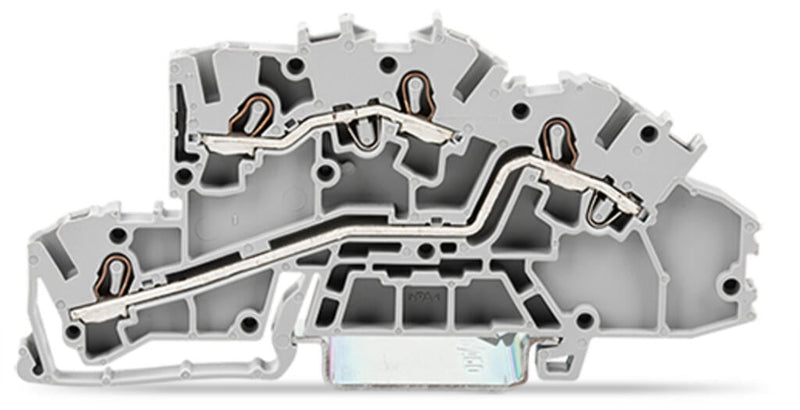

WAGO 2003-7642 Multilevel Installation Terminal Block 2.5 mm² 24 A L/L Gray

The WAGO 2003-7642 is a 3-level installation terminal block from the TOPJOB S 2003 Series, designed for L/L potential connections. Using Push-in CAGE CLAMP technology, it accepts solid and fine-stranded copper conductors from 0.25 to 4 mm² with or without tooling, and is rated 24 A at 400 V per IEC/EN 60947-7-1.

Technical specifications:

• Catalog number: 2003-7642
• Manufacturer: WAGO
• Series: 2003 (TOPJOB S)
• Type: Multilevel installation terminal block
• Potential marking: L/L; levels: 3; potentials: 2; clamping units: 4
• Connection: Push-in CAGE CLAMP, operating tool actuation, front-entry wiring
• Rated voltage: 400 V; rated current: 24 A; impulse withstand: 6 kV
• Overvoltage category III / pollution degree 3 (IEC/EN 60947-7-1)
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 - 4 mm² / 22 - 12 AWG
• Fine-stranded conductor: 0.25 - 4 mm² / 22 - 12 AWG
• Fine-stranded with ferrule, push-in: 1 - 2.5 mm² / 18 - 14 AWG
• Strip length: 10 - 12 mm
• Mounting: DIN-35 rail
• Dimensions: W 5.2 mm x H 96 mm x D 42.3 mm
• Weight: 13.6 g; color: gray
• Insulation: Polyamide (PA66), UL94 V0
• Operating temperature: -60 to +105 °C; processing: -35 to +85 °C
• Power loss per pole: 0.7661 W at 24 A
• Pack quantity: 50 pcs; country of origin: DE
• GTIN: 4044918925594
• RoHS: Compliant, No Exemption
• Approvals: CCA (DEKRA EN 60947), ABS, DNV GL, PRS; EU and UK Declarations of Conformity

Features and benefits:

• Push-in CAGE CLAMP allows tool-free insertion of solid conductors and ferrule-terminated fine-stranded conductors directly into the clamping point
• 3-level design with 4 clamping units in a 5.2 mm width conserves DIN-rail space
• UL94 V0 Polyamide (PA66) housing meets fire resistance requirements
• Marine approvals from ABS, DNV GL, and PRS suit offshore and shipboard panel installations

Applications:

• L/L phase distribution across multiple circuit levels in switchgear and control panels
• Compact DIN-rail wiring in industrial enclosures where space is limited
• Marine and offshore electrical panel builds requiring ABS or DNV GL certification
• Building installation wiring to IEC/EN 60947-7-1 overvoltage category III

Also known as: WAGO 2003-7642, WAGO TOPJOB S multilevel installation terminal block 2.5 mm².
