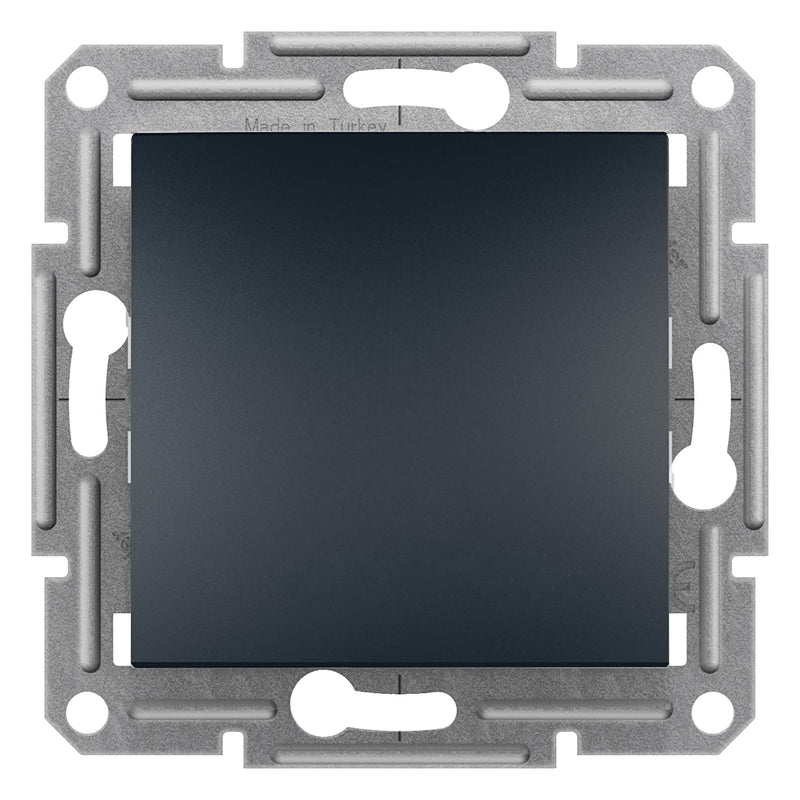

Schneider EPH0500371 Asfora Intermediate switch Anthracite No Frame

The Schneider Electric EPH0500371 is an intermediate (cross) switch from the Asfora series, designed for installation without a frame and featuring screw terminal connections. Finished in anthracite, it is rated at 10 AX at 250 V AC with a power range of 2300 W, suitable for use with fluorescent lamp loads with ballast up to 100 W.

Technical specifications:

• Commercial reference: EPH0500371
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Asfora
• Product type: Switch
• Switch function: Intermediate (cross)
• Number of switches: 1
• Rated current: 10 AX at 250 V AC
• Power range: 2300 W
• Load type: Fluorescent lamp with ballast: 100 W
• Number of cables: 2 cables, 2.5 mm²
• Cable flexibility: Flexible, rigid, single-core, multi-core
• Strip length: 13.0 mm
• Connection type: Screw terminals
• Material: ABS (acrylonitrile butadiene styrene)
• Finish: Painted
• Conductor material: Copper
• Fixing method: Screws or hooks, 51-70 mm
• Width: 71 mm
• Height: 71 mm
• Depth: 43.0 mm
• Design depth: 15 mm
• Weight: 0.0679 kg
• IP protection rating: IP20
• Operating temperature: -5 to 40 °C
• Colour shade: Anthracite
• Standard: IEC 60669-1
• Certifications: VDE, CE
• Mounting: Flush (recessed)
• Packaging type: Bag packaging

Features and benefits:

• Intermediate switch function enables control of a single light from three or more switching points
• Screw terminal connections ensure reliable and secure cable fixing
• ABS plastic construction with painted anthracite finish for a modern aesthetic
• Frameless design allows flexible installation with compatible mounting frames
• Compatible with both flexible and rigid single-core and multi-core cables up to 2.5 mm²
• Certified to IEC 60669-1 with VDE and CE marks for assured product safety

Applications:

• Residential wiring installations requiring intermediate switching from multiple locations
• Hotel corridors, staircases, and hallways with three-way or multi-point lighting control
• Commercial interiors where anthracite finish matches modern decor schemes
• Flush-mounted wall switch installations in new-build or renovation projects

Compliant with IEC 60669-1. Part of the Schneider Electric Asfora series.

Also known as: Schneider EPH0500371, Schneider Electric EPH0500371, Asfora intermediate switch anthracite, Asfora cross switch no frame.
