Schneider EPH5500171 Asfora Cable Outlet 25A 250V Anthracite

Overview

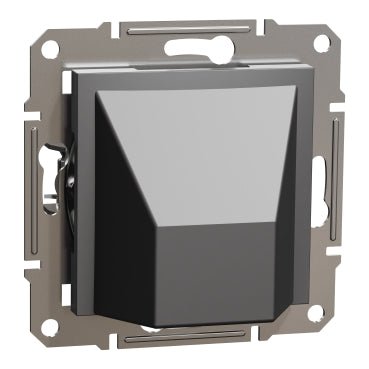

The Schneider EPH5500171 is an Asfora cable outlet plate in anthracite, supplied as a mechanism with fixing frame. It provides a fixed connection point on the wall for hard-wired loads such as cookers, water heaters, fans and other appliances rated up to 25 A at 250 V AC, in place of a plug-and-socket connection.

Key features

• Cable outlet rated 25 A at 250 V AC for fixed appliance connections.
• UV-stabilised ABS body with glossy anthracite finish.
• Flush mounting with claws (56...74 mm working range) and screws.
• Compact 71 x 71 x 48 mm module with 19.85 mm projecting depth.
• CE marked and IP20 rated for indoor use.

Technical specifications

• Range: Asfora
• Product type: Cable outlet
• Device presentation: Mechanism with fixing frame
• Rated current: 25 A at 250 V AC
• Colour tint: Anthracite
• Material: Thermoplastic ABS-UV stabilised
• Surface finish: Glossy
• Device mounting: Flush
• Fixing mode: Claws (56...74 mm) and screws
• Dimensions (W x H x D): 71 x 71 x 48 mm
• Projecting depth: 19.85 mm
• Product weight: 0.0524 kg
• IP degree of protection: IP20
• Quality label: CE
• Warranty: 18 months

Applications

Used in residential and light commercial installations for the permanent hard-wired connection of appliances such as electric cookers, ovens, water heaters, extractor fans and built-in heaters where a flexible lead must be terminated cleanly behind a wall plate.
