Schneider EPH0500161 Asfora Intermediate Switch Insert Aluminium

Overview

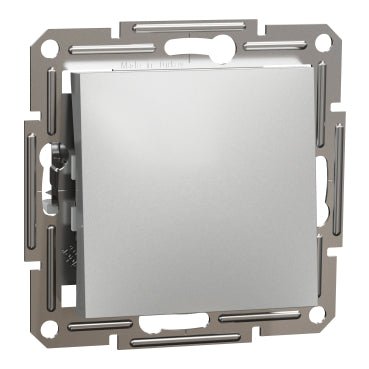

The Schneider Electric EPH0500161 is an Asfora intermediate (crossover) wall switch insert in aluminium. It is supplied as a mechanism with fixing frame and cover plate (no decorative outer frame) for combination into multi-gang Asfora assemblies. The intermediate function is used between two 2-way switches to allow lighting control from three or more locations. Terminals are screwless push-in, rated 10 AX at 250 V AC.

Key Specifications

• Range: Asfora
• Type: Wall switch insert, intermediate (crossover)
• Number of rockers: 1
• Presentation: Mechanism with fixing frame and cover plate (no outer frame)
• Actuator: Rocker, flush mounting
• Rated current: 10 AX at 250 V AC
• Rated voltage [Ue]: 230 V
• Power range: 2300 W
• Energy-saving lamp load (with ballast): up to 100 W
• Terminals: Screwless push-in, 2 x 2.5 mm² (rigid / flexible / solid stranded), 13 mm strip
• Conductor material: Copper
• Fixing: Screws or claws, 51...70 mm centres
• Material: ABS, matt, lacquered
• Colour: Aluminium
• Dimensions: 71 x 71 x 43 mm (H x W x D), projecting depth 15 mm
• Weight: 61.9 g
• IP20 / IK02; operating temperature -5...40 °C
• Standards: IEC 60669-1; certifications TSE, VDE; CE, UKR labels
• Warranty: 18 months

Typical Applications

• Lighting control from three or more locations in multi-gang Asfora assemblies
• Long hallways, large rooms, multi-entry spaces
• Component for custom Asfora frame arrangements

Compliance

IEC 60669-1. CE marked. Schneider Electric Asfora wiring devices range. Requires a matching Asfora decorative frame for installation.
