Schneider EPH0170123 Asfora 1-Gang 1-Way Switch 10AX 250V Cream

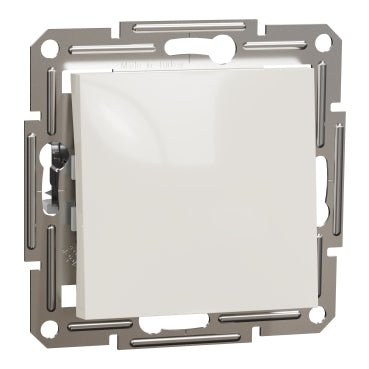

The Schneider Electric EPH0170123 is an Asfora flush-mounted 1-gang 1-way wall switch with screwless terminals, supplied as a mechanism with mounting frame and protective plate in glossy cream. It is rated 10 AX at 250 V AC for switching lighting circuits and complies with IEC 60669-1.

Key features

• Asfora range, single 1-pole 1-way (on/off) switching function, 1 rocker button
• Rated 10 AX at 250 V AC, power range up to 2300 W
• Screwless push-in connection terminals for 2 x 2.5 mm² conductors (flexible, rigid or solid stranded)
• Flush (recessed) installation, rocker (lever) actuator
• Glossy cream ABS finish; supplied without surround frame (mechanism + claws + cover plate)
• Screw or claw fixing for 51...70 mm boxes

Technical specifications

• Range: Asfora; product type: switch (mechanism with mounting frame and cover plate)
• Function: 1-pole 1-way switch; 1 rocker button
• Rated current: 10 AX at 250 V AC; rated operational voltage 250 V
• Compatible load: energy-saving lamps with electronic ballast up to 100 W
• Terminals: screwless (push-in); 2 cables 2.5 mm²; 13 mm wire-stripping length; copper conductors
• Material: ABS (acrylonitrile-butadiene-styrene), glossy finish, untreated surface
• Mounting: recessed, fixed by screws or claws in 51...70 mm box
• Dimensions: 71 x 71 x 43 mm (W x H x D), 15 mm projection depth
• Weight: 58.5 g
• Protection: IP20, impact rating IK02
• Operating ambient temperature: -5...40 °C
• Standards: IEC 60669-1; certifications TSE, VDE, NF; quality labels CE, UKR

Typical applications

Domestic and light-commercial lighting control at a single wall position - for example controlling a single ceiling or wall fitting from one location - using a tool-free screwless push-in installation behind a flush wall box.
