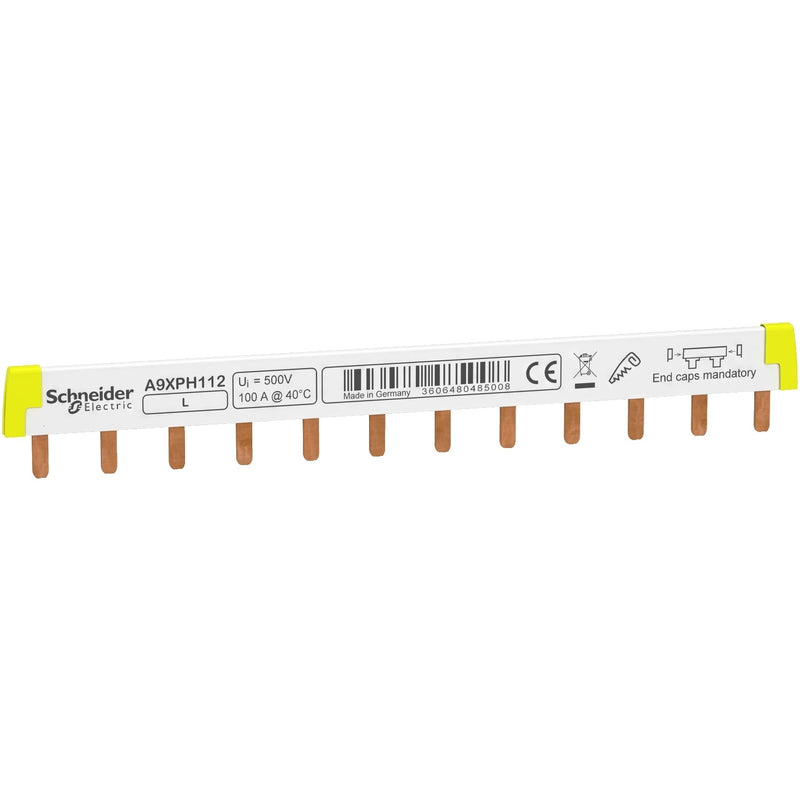

Schneider A9XPH112 Acti9 Comb Busbar 1L 12 Modules 100A 18mm

The Schneider Electric A9XPH112 is an Acti 9 comb busbar designed for single-pole parallel distribution across 12 modules at 18mm pitch. Rated at 100A at 40°C and 415V AC, it connects seamlessly to Acti 9 and Multi 9 modular devices. The busbar can be cut to the required length for flexible installation in distribution boards and consumer units.

Technical specifications:

• Commercial reference: A9XPH112
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Acti 9
• Product type: Comb busbar
• Distribution line: 1L (single phase)
• Number of connections: 12 x 1P
• Rated operational current [Ie]: 100A at 40°C
• Rated voltage [Ue]: 415V AC
• Rated insulation voltage [Ui]: 500V AC (IEC 61439-2)
• Connection pitch: 18mm
• Terminal spacing: 18mm
• Width: 220mm
• Connection type: Comb (tooth-type)
• Mounting: Horizontal, top or bottom on tunnel or double terminals
• IP protection: IP20 with end elements and contact insulators
• Fire resistance: 960°C / 30s per IEC 60695-2-1
• Pollution degree: 3 per IEC 60947-7-1
• Color: White (RAL 9003)
• Standard: EN/IEC 61439-1
• Warranty: 18 months

Features and benefits:

• Cuttable in 18mm module increments for flexible on-site length adjustment
• Rated at 100A at 40°C for reliable high-current single-phase distribution
• Compatible with Acti 9 iC60, iK60, iID, iID K, iSW, iSW-NA, and Multi 9 C60 devices
• Insulated construction with IP20 protection for safe handling and installation
• Plastic-free and recycled cardboard packaging in line with sustainability requirements

Applications:

• Single-phase distribution in modular consumer units and distribution boards
• Parallel feeding of MCBs and RCDs in Acti 9 equipped panels
• Residential and commercial electrical distribution enclosures
• DIN rail switchgear assemblies requiring compact comb busbar wiring

Compliant with EN/IEC 61439-1 and IEC 61439-2. Part of the Schneider Electric Acti 9 range.

Also known as: Schneider A9XPH112, Schneider Electric A9XPH112, Acti 9 comb busbar, single-pole distribution busbar.
