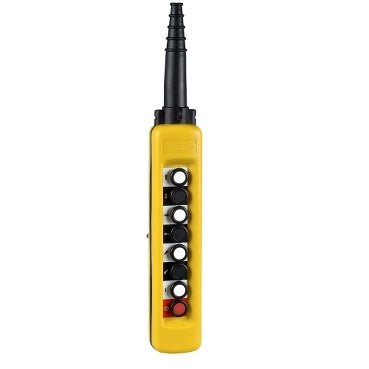

Schneider XACA871 XACA Pendant control station 8 push-buttons with 1NO

The Schneider Electric XACA871 is a pendant control station from the Harmony XAC series, designed for single-speed crane and hoist motor control. It features 8 push-buttons with mechanical interlocking between directional pairs and carries IP65 protection for reliable operation in demanding industrial environments.

Technical specifications:

• Commercial reference: XACA871
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Harmony XAC
• Product type: Pendant control station
• Number of buttons: 8 push-buttons
• Button configuration: Button 1 - 1 NO raise slow; Button 2 - 1 NO lower slow; Button 3 - 1 NO right slow; Button 4 - 1 NO left slow; Button 5 - 1 NO forward slow; Button 6 - 1 NO reverse slow; Button 7 - 1 NO I (on); Button 8 - 1 NC O (off)
• Mechanical interlocking: Between directional pairs
• Housing material: Polypropylene
• Housing color: Yellow
• Insulation class: Double insulated (Class II per IEC 61140)
• IP protection: IP65 per IEC 60529
• Impact protection: IK08 per IEC 62262
• Insulation voltage [Ui]: 600 V (pollution degree 3)
• Impulse withstand voltage [Uimp]: 6 kV per IEC 60947-1
• Thermal current in enclosure [Ithe]: 10 A
• Contact rating: A600 AC-15, Ue = 240 V, Ie = 3 A; A600 AC-15, Ue = 600 V, Ie = 1.2 A per IEC 60947-5-1 Annex A
• Connection terminals: Screw terminals, 1 x 0.5...1 x 2.5 mm² without cable end; 1 x 0.5...2 x 1.5 mm² with cable end
• Cable entry: Rubber cable gland with stepped entry 8...26 mm
• Operating temperature: -25...70 °C
• Storage temperature: -40...70 °C
• Vibration resistance: 15 gn (f = 10...500 Hz) per IEC 60068-2-6
• Shock resistance: 100 gn per IEC 60068-2-27
• Mechanical durability: 1,000,000 operating cycles
• Short-circuit protection: 10 A fuse, gG type
• Product weight: 0.94 kg
• Standards: IEC 60947-5-1, IEC 60204-32, CSA C22.2 No 14, UL 508
• Certifications: CCC, GOST

Features and benefits:

• Double-insulated polypropylene housing provides enhanced operator safety in industrial environments
• Mechanical interlocking between directional push-button pairs prevents simultaneous activation of opposing directions
• IP65-rated enclosure protects against dust ingress and water jets, suitable for harsh workshop conditions
• Wide operating temperature range of -25...70 °C ensures reliable performance in both cold storage and hot industrial settings
• 1,000,000-cycle mechanical durability supports continuous heavy-duty crane and hoist operations
• Compatible with ZB2BE101 and ZB2BE102 contact blocks for flexible maintenance and replacement

Applications:

• Single-speed overhead crane and bridge crane motor control
• Industrial hoist and lifting equipment control stations
• Warehouse and logistics gantry crane operations
• Manufacturing plant material handling systems
• Port and heavy-industry crane control applications

Compliant with IEC 60947-5-1, IEC 60204-32, CSA C22.2 No 14, and UL 508. Part of the Schneider Electric Harmony XAC range.
