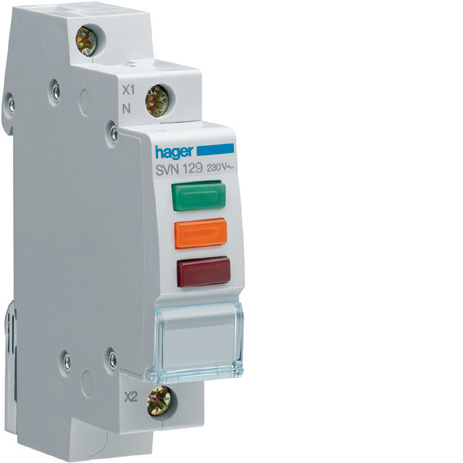

Hager SVN129 LED Indicator Module Red Green Orange 230VAC 1 Module

The Hager SVN129 is a DIN rail LED signal module with three indicators - red, green and orange - operating from 230 V AC. It is one module wide and gives clear status indication of circuits or plant directly on the distribution board.

Technical specifications:

• Reference: SVN129
• Manufacturer: Hager
• Product type: LED signal module
• Indicator colours: Red, green and orange
• Lamp type: LED
• Lamp holder: Fixed
• Rated voltage (Ue): 230 V AC
• Frequency: 50-60 Hz
• Rated insulation voltage (Ui): 400 V
• Rated impulse withstand voltage (Uimp): 4000 V
• Total power loss at In: 0.80 W
• Number of modules: 1
• Connection: Screw terminals
• Conductor cross-section: 0.75-10 mm2 solid, 0.75-6 mm2 flexible
• Degree of protection: IP20
• Operating temperature: -20 C to 50 C
• Storage and transport temperature: -40 C to 80 C
• Dimensions (HxWxD): 83 x 17.50 x 62 mm
• REACh SVHC free: Yes
• RoHS compliant: Yes

Features and benefits:

• Three LED indicators in a single 17.5 mm module
• Long-life LED illumination with fixed lamp holder - no lamp replacement
• Low 0.80 W total power loss
• Screw terminals accepting up to 10 mm2 solid conductor
• REACh SVHC free and RoHS compliant

Applications:

• Phase presence and circuit status indication on distribution boards
• Plant and machine status signalling in control panels
• Three-state indication (for example run / fault / standby) from one module
• Retrofit indication into existing Hager modular assemblies

DIN rail modular device, 1 module wide. RoHS compliant and REACh SVHC free.

Also known as: Hager SVN129, LED signal module red/green/orange 230 VAC.
