Lapp 1023759 H1Z2Z2-K Solar PV Cable 1x4mm² Black Per Metre
by LAPP
Free Shipping
Get free shipping on orders exceeding €300!
Original price
$1.35
-
Original price
$1.35
Original price
$1.35
$1.35
-
$1.35
Current price
$1.35

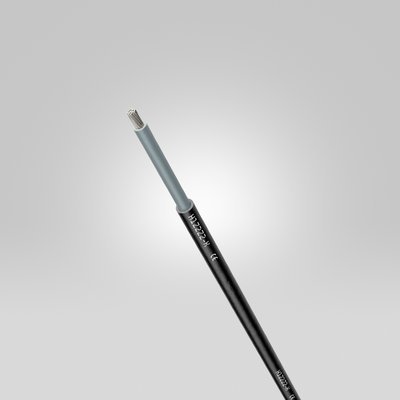

The Lapp 1023759 is an H1Z2Z2-K solar PV cable rated for 1.8kV DC (1500V DC system voltage), with 1x4mm² cross-section in black halogen-free XLPE insulation and outer sheath. UV and weather-resistant for outdoor photovoltaic installations. Sold per metre.
Technical specifications:
- Part number: 1023759
- Manufacturer: Lapp
- Cable type: H1Z2Z2-K
- Conductor cross-section: 4mm²
- Colour: Black
- Rated voltage: 1.8kV DC (1500V DC system voltage)
- Conductor: Fine-stranded tinned copper, Class 5
- Insulation: XLPE, halogen-free
- Outer sheath: XLPE, halogen-free, UV-resistant
- Temperature range: -40°C to +90°C
- Standard: EN 50618, IEC 62930
- Sold: Per metre
Applications:
- DC wiring between PV modules in solar string arrays
- Connection between PV strings and string combiner boxes
- Wiring from solar arrays to inverters (DC side)
- Rooftop and ground-mounted solar installations
Also known as: Lapp 1023759, H1Z2Z2-K 4mm² black, solar cable 4mm², PV cable black, DC solar wiring cable.
