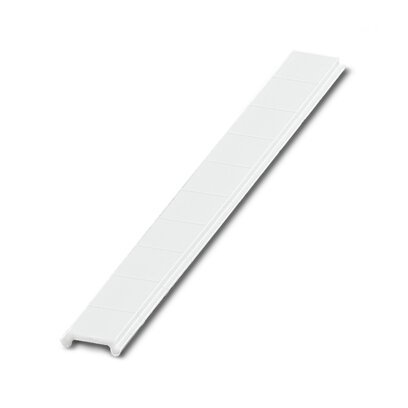

Phoenix Contact 0808710 ZBF 6:UNBEDRUCKT Zack Marker strip

The ZBF 6:UNBEDRUCKT is a flat Zack marker strip from Phoenix Contact designed for labeling modular terminal blocks and electronics modules with a 6.2 mm pitch. Supplied unmarked in white (RAL 9010), each strip carries 10 individual labels and accepts custom printing via the PLOTMARK or CMS-P1-PLOTTER marking plotter or by hand. The latching mounting system allows quick fitting and easy separation of individual labels when required.

Technical specifications:

• Part designation: ZBF 6:UNBEDRUCKT
• Catalog number: 0808710
• Manufacturer: Phoenix Contact
• EAN: 4017918180317
• Product type: Zack Marker strip, flat
• Pack size: 10 pc
• Color: white (RAL 9010)
• Pitch: 6.2 mm
• Number of individual labels: 10
• Text field dimensions: 5.15 mm (W) x 6.15 mm (H)
• Dimensions (W x H x D): 6.15 mm x 6.40 mm x 1.60 mm
• Slot type: flat
• Mounting type: latching
• Material: PA
• Flammability rating: UL 94 V2
• Operating temperature: -40°C to 100°C
• Weight (excluding packing): 0.377 g
• Country of origin: DE

Features and benefits:

• Unmarked strips accept custom labeling by plotter (PLOTMARK or CMS-P1-PLOTTER) or by hand
• Multi-section strips fit easily and individual labels separate cleanly when required
• Halogen-free and silicone-free construction
• UV resistance tested to DIN EN ISO 4892-2:2021-11
• Wipe-resistant inscriptions per DIN EN 61010-1 (VDE 0411-1)
• Other pitches available on request for flexible installation needs

Applications:

• Labeling modular terminal blocks in control cabinets and distribution boards
• Circuit and conductor identification in industrial electrical installations
• Custom marking of electronics modules mounted on DIN rail
• Switchgear panel labeling with plotter-printed or hand-written identifiers
• Systematic terminal identification in building automation and process control systems

Compliant with DIN EN 61010-1 (VDE 0411-1):2011-07 and DIN EN 62208 (VDE 0660-511):2012-06. Part of the Phoenix Contact ZBF Zack marker strip system with flat marker groove for modular terminal blocks.

Also known as: Phoenix Contact ZBF 6:UNBEDRUCKT, Phoenix 0808710, Zack marker strip 6.2 mm, flat terminal block marker strip.
