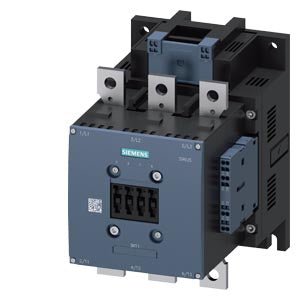

Siemens 3RT1064-2AB36 SIRIUS Power Contactor 3P 225A 110kW 23-26V DC

The Siemens 3RT1064-2AB36 (MLFB: 3RT1064-2AB36) is a SIRIUS 3RT1 series power contactor rated at 225 A / 110 kW at 400 V AC-3e/AC-3. It is a 3-pole contactor with a 23-26 V DC control coil, designed for switching three-phase motors and resistive loads. The auxiliary contact arrangement is 2 NO + 2 NC, and the main circuit uses busbar terminals while the control and auxiliary circuits use spring-loaded terminals.

Technical specifications:

• MLFB: 3RT1064-2AB36
• Manufacturer: Siemens
• Product line: SIRIUS
• Product type designation: 3RT1
• Contactor size: S10
• Number of poles (main circuit): 3
• Rated operational current AC-3 at 400 V: 225 A
• Rated operational current AC-1 at 400 V / 40 °C: 275 A
• Rated operating power AC-3 at 400 V: 110 kW
• Rated operating power AC-3 at 690 V: 200 kW
• Operating voltage (main circuit): up to 1,000 V AC
• Control voltage (coil): 23-26 V DC
• Auxiliary contacts: 2 NO + 2 NC
• Main circuit terminals: busbar
• Control/auxiliary circuit terminals: spring-loaded
• Insulation voltage (main circuit, pollution degree 3): 1,000 V
• Insulation voltage (auxiliary circuit, pollution degree 3): 500 V
• Surge voltage resistance (main circuit): 8 kV
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -55 °C to +80 °C
• Max. installation altitude: 2,000 m
• Mechanical service life: 10,000,000 operating cycles
• Power loss at rated current (hot state): 51 W
• Net weight: 6.56 kg

Features and benefits:

• Spring-loaded terminals on control and auxiliary circuits allow tool-free, vibration-resistant wiring
• Busbar main circuit connection suited for high-current panel assemblies
• Wide operating temperature range (-25 °C to +60 °C) supports demanding industrial environments
• 10 million mechanical operating cycles provides long service life
• Compatible with added auxiliary switch blocks without reducing mechanical service life
• Low DC control voltage (23-26 V) supports safe-extra-low-voltage control circuits

Applications:

• Direct-on-line starting of large three-phase motors up to 110 kW at 400 V
• Motor switching in industrial drives, compressors, and pumps up to 200 kW at 690 V
• Capacitor bank switching (AC-6a) in power factor correction systems
• High-current load switching in motor control centres and distribution panels
• DC bus control circuits operating at 23-26 V in automation and control cabinets

Compliant with EN/IEC 60947-4-1. Part of the Siemens SIRIUS 3RT1 range.

Also known as: Siemens 3RT1064-2AB36, Siemens SIRIUS 3RT1 power contactor 225A, 3RT10642AB36.
