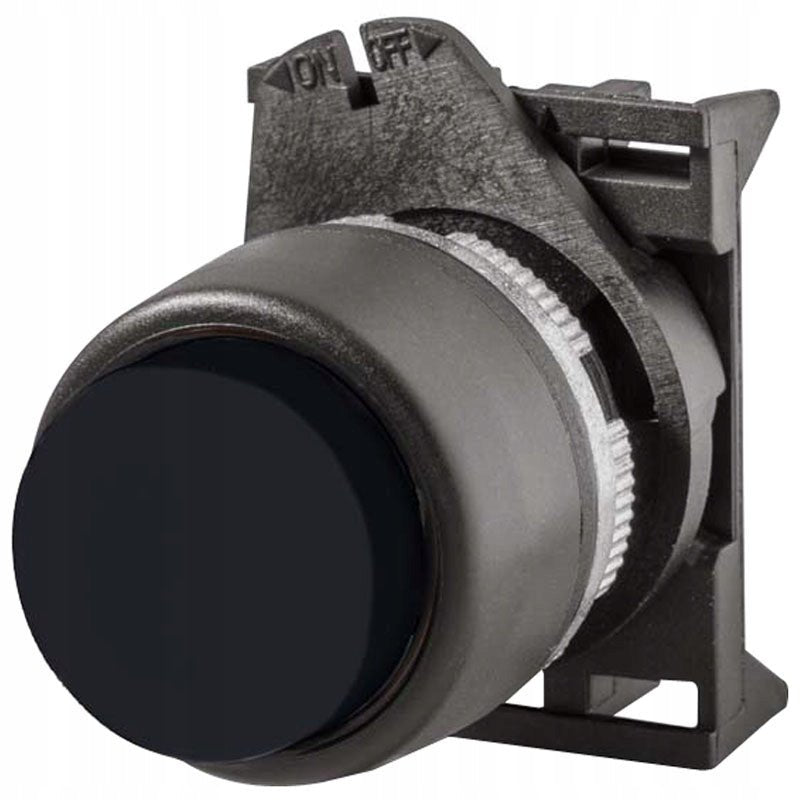

Giovenzana PPSN8 Push Button Black Extended 22mm

The Giovenzana PPSN8 is a black extended-actuator push button for 22mm panel cutout from the PPS series. The extended actuator protrudes further from the panel than flush types, making it easier to press and more visible on the panel face.

Technical specifications:

• Part number: PPSN8
• Manufacturer: Giovenzana
• Series: PPS
• Type: Extended push button
• Colour: Black
• Panel cutout: 22mm
• Action: Momentary (spring return)
• Standards: IEC 60947-5-1

Features and benefits:

• Momentary spring-return action for start/stop and control functions
• 22mm panel cutout compatible with standard control panel accessories
• Colour-coded actuator caps aid operator identification
• Compatible with Giovenzana contact blocks (PL004001 NC, PL004002 NO)

Applications:

• Start/stop control on motor control panels and machine tools
• Operator interface push buttons in control cabinets
• Industrial process control panel push buttons

Compliant with IEC 60947-5-1.

Also known as: Giovenzana PPSN8, PPS black extended push button 22mm, black raised actuator button 22mm, Giovenzana black extended control button.
