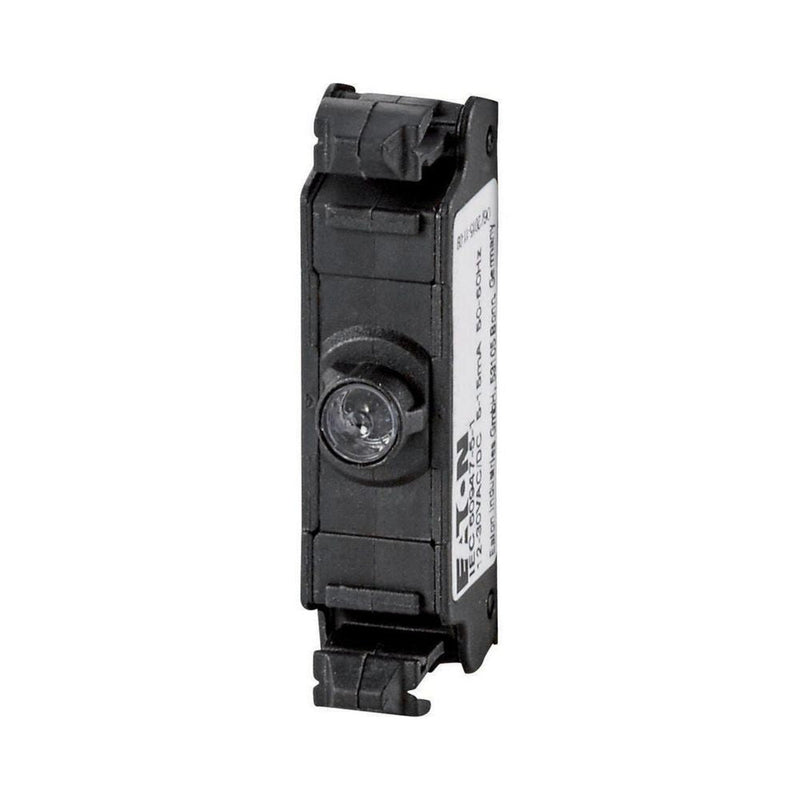

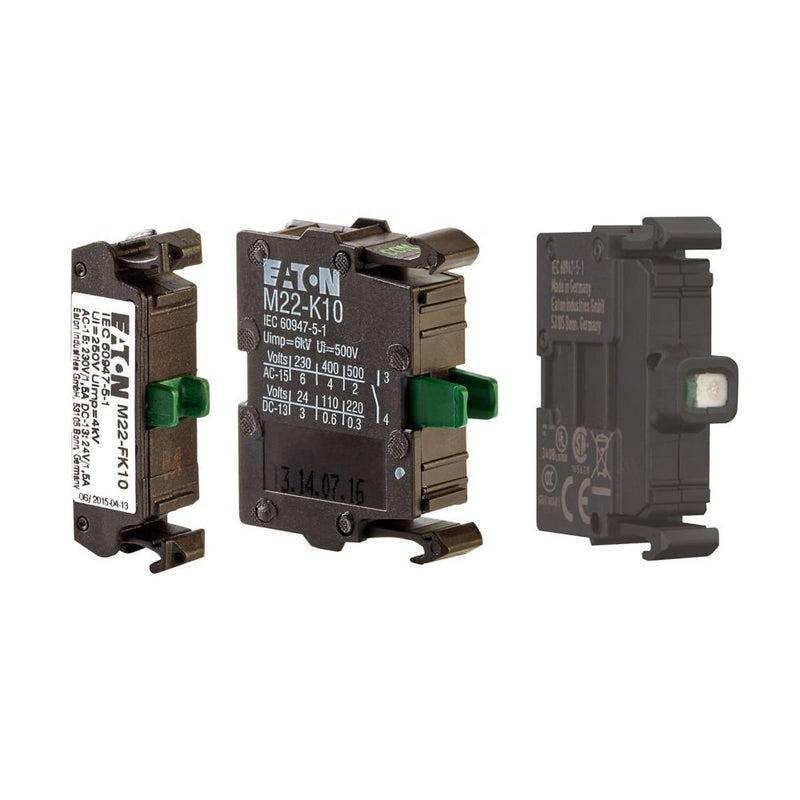

Eaton 180798 M22-FLED-R LED Indicator Element Red M22 22.5mm 12-30V

The Eaton M22-FLED-R is a red LED element from the Moeller M22 series for front mounting in industrial control panel assemblies. It operates on 12-30 V AC/DC, draws 5-15 mA, and provides 100,000 h of service life at 25°C with a maximum power consumption of 0.26 W.

Technical specifications:

• Model code: M22-FLED-R
• Catalog number: 180798
• Manufacturer: Eaton
• EAN: 4015081759729
• Product type: LED Element
• Light color: Red
• Lamp type: LED
• Voltage AC/DC: 12-30 V
• Current: 5-15 mA
• Insulation voltage (Ui): 250 V
• Impulse withstand (Uimp): 4000 V AC
• Overvoltage category: III
• Pollution degree: 3
• Power consumption: max. 0.26 W
• Lifespan: 100,000 h at 25°C
• Degree of protection: IP20
• Fastening type: Front fastening
• Connection: Spring clamp
• Terminal (solid/stranded): 1 x 0.2-1.5 mm²
• Terminal (flexible with ferrule): 1 x 0.25-1 mm²
• AWG: 20
• Operating temperature: -25°C to 70°C
• Storage temperature: -40°C to 85°C
• Shock resistance: 50 g (IEC/EN 60068-2-27, half-sinusoidal, 11 ms)
• Dimensions (L x W x H): 38 x 14 x 10 mm
• Weight: 0.004 kg
• SmartWire-DT: No
• Certifications: CE, UL (File No. E29184), CSA (File No. 012528), IEC/EN 60947-5-1, UL 508, CSA-C22.2 No. 14-05

Features and benefits:

• 100,000 h LED lifespan at 25°C significantly reduces lamp replacement frequency and panel maintenance costs
• 12-30 V AC/DC operating range suits common PLC output voltages and relay control circuits without additional conversion
• Spring clamp terminals accept 0.2-1.5 mm² solid and stranded conductors for fast, reliable wiring
• Front fastening design allows installation and removal from the panel face without rear enclosure access
• Rated to pollution degree 3 with 50 g shock resistance for dependable performance in demanding industrial environments

Applications:

• Status and fault indication on machine tool and automation control panels
• Operator pushbutton stations requiring clear red alarm or warning signals
• Motor control centers and variable speed drive enclosure indicator arrays
• Process control, SCADA, and building automation front panel signaling

Compliant with IEC/EN 60947-5-1 and UL 508, with CE and CSA-C22.2 No. 14-05 certification. Part of the Eaton Moeller M22 pushbutton and signaling series.
