Eaton 216925 M22-DL-R M22 Pushbutton 22.5mm Red momentary Illuminated

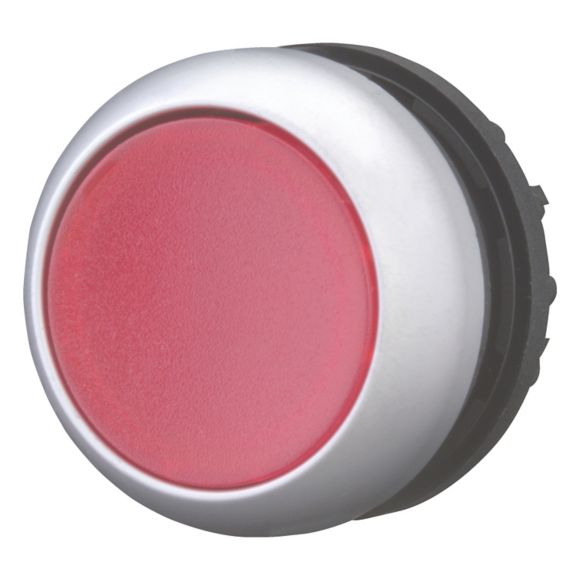

The Eaton M22-DL-R is a flush, momentary illuminated pushbutton actuator from the RMQ-Titan M22 series, fitted with a red flat lens and a titanium-coloured plastic bezel. It mounts in a Ø 22.5 mm panel cutout, achieves IP67/IP69K front-side protection, and supports SmartWire-DT bus wiring. A 5,000,000-operation mechanical lifespan and -25 °C to 70 °C ambient range make it well suited to demanding industrial and marine installations.

Technical specifications:

• Model code: M22-DL-R
• Catalog number: 216925
• Manufacturer: Eaton
• EAN: 4015082169251
• Product type: Illuminated pushbutton actuator
• Actuator color: Red
• Actuator function: Momentary, spring-return
• Design: Flush, classical
• Front element type: Flat
• Lens type: Round
• Inscription: Blank
• Bezel color: Titanium
• Bezel material: Plastic
• Opening diameter: Ø 22.5 mm
• Front dimensions: 22 x 22 mm
• Overall dimensions: 30 x 30 x 30 mm
• Weight: 0.01 kg
• Actuating force: 5 N
• Number of command positions: 1
• Operating frequency: 3,600 operations/h
• Mechanical lifespan: 5,000,000 operations
• Ambient operating temperature: -25 °C to 70 °C
• Front-side protection: IP67/IP69K, NEMA 4X
• Overall protection: IP66, IP67, IP69K, NEMA 3R, NEMA 12, NEMA 13, NEMA 4X
• Shock resistance: 30 g sinusoidal, 11 ms (IEC/EN 60068-2-27)
• Climatic proofing: Damp heat constant and cyclic (IEC 60068-2-78, IEC 60068-2-30)
• SmartWire-DT: Compatible via SWD-RMQ connections
• Mounting position: As required
• Series: RMQ-Titan
• Certifications: CE, IEC/EN 60947-5, UL 508, CSA C22.2 No. 14-05, CSA C22.2 No. 94-91, VDE, DNV, GL, LR

Features and benefits:

• IP67/IP69K and NEMA 4X front rating ensures reliable operation in wet, washdown, and outdoor environments
• SmartWire-DT compatibility via SWD-RMQ connections reduces control panel wiring effort
• 5,000,000-operation mechanical lifespan supports high-cycle industrial processes without premature replacement
• Wide -25 °C to 70 °C range with damp-heat proofing covers indoor, outdoor, and refrigerated installations
• International certifications - CE, UL, CSA, VDE, DNV, GL, LR - enable global project deployment

Applications:

• Operator control panels and HMI stations on industrial machinery
• Automation and production line start/stop controls
• Process control stations requiring illuminated command feedback
• Marine and offshore control equipment (DNV, GL, LR approved)
• Washdown and food-processing environments requiring IP69K ingress protection

Compliant with IEC/EN 60947-5, UL 508, and CSA C22.2 No. 14-05. Part of the Eaton Moeller RMQ-Titan M22 series of 22 mm control devices.

Also known as: Eaton M22-DL-R, Eaton 216925, Eaton catalog 216925, Eaton model M22-DL-R, RMQ-Titan red illuminated pushbutton.
