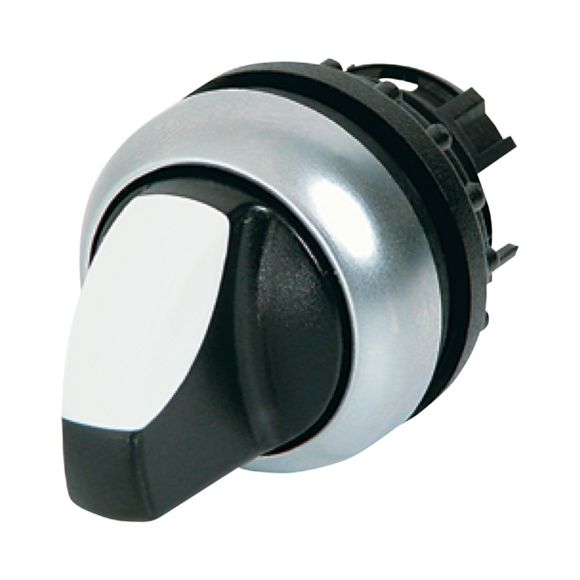

Eaton 216812 M22-WLK-W M22 Selector Switch 2-Position momentary White

The M22-WLK-W is a 2-position illuminated toggle selector switch actuator from Eaton's RMQ-Titan M22 series. It combines a spring-return thumb-grip toggle, white round lens, and titanium plastic bezel with IP66 front-face protection for reliable operation in industrial control panels.

Technical specifications:

• Model code: M22-WLK-W
• Catalog number: 216812
• Manufacturer: Eaton
• EAN: 4015082168124
• Product type: Illuminated selector switch actuator
• Series: RMQ-Titan
• Actuator type: Toggle with thumb-grip
• Actuator function: Momentary, spring-return
• Number of positions: 2
• Actuator color: Black
• Lens/indicator color: White
• Bezel color: Titanium
• Bezel material: Plastic
• Panel cutout: Ø 22.5 mm
• Front diameter: 29.7 mm
• Switching angle: 40°
• Operating torque: 0.3 Nm
• Operating frequency: 2,000 operations/h
• Mechanical lifespan: 100,000 operations
• Degree of protection (front): IP66
• Degree of protection: NEMA 4X, NEMA 13
• Overvoltage category: III
• Pollution degree: 3
• Ambient temperature: -25 °C to +70 °C
• Shock resistance: 30 g sinusoidal 11 ms (IEC/EN 60068-2-27)
• SmartWire-DT compatible: Yes, via SWD-RMQ connections
• Dimensions (L x H x W): 46 x 30 x 30 mm
• Weight: 0.013 kg
• Certifications: CE, IEC/EN 60947-5, UL 508, CSA, VDE

Features and benefits:

• IP66 and NEMA 4X/13 ratings protect against dust, water jets, and oil ingress in demanding industrial environments
• Spring-return/stay-put function is field-changeable using M22-XC-Y coding parts for installation flexibility
• SmartWire-DT ready via SWD-RMQ connections, reducing panel wiring complexity and commissioning time
• Rated for 2,000 operations/h and 100,000 mechanical cycles for long, reliable service life

Applications:

• Machine control panels requiring illuminated 2-position mode or direction selection
• Industrial automation cabinets using SmartWire-DT wiring architectures
• Outdoor enclosures and washdown areas demanding IP66-rated operator controls
• Process control desks in oil-laden, dusty, or high-humidity plant environments

Compliant with IEC/EN 60947-5, UL 508, CSA C22.2 No. 94-91, and VDE 0660. Part of the Eaton Moeller RMQ-Titan M22 series, compatible with M22 contact blocks and accessories.
