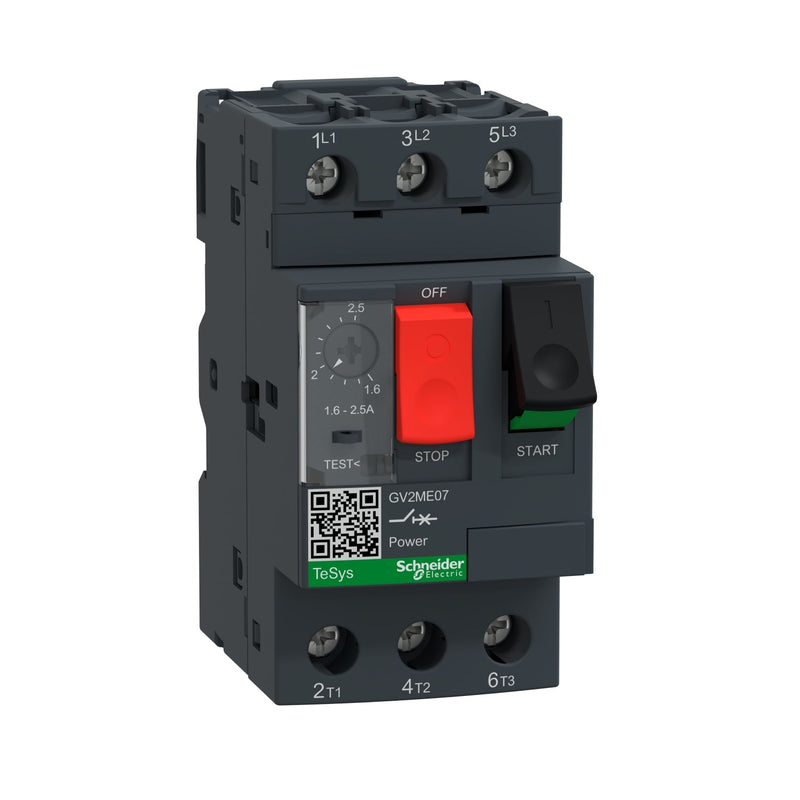

Schneider GV2ME07 TeSys Deca Motor Circuit Breaker 3P 1.6-2.5A 50kA

The Schneider Electric GV2ME07 is a 3-pole thermomagnetic motor circuit breaker from the TeSys GV2 range (TeSys Deca group), designed for AC motor protection. Rated at 2.5 A with a thermal adjustment range of 1.6-2.5 A, it delivers 100 kA Icu breaking capacity at up to 500 V AC and features integrated phase-loss sensitivity.

Technical specifications:

• Commercial reference: GV2ME07
• Manufacturer: Schneider Electric
• EAN:
• Series / range: TeSys GV2 (TeSys Deca group)
• Product type: 3-pole thermomagnetic motor circuit breaker
• Number of poles: 3P
• Network type: AC, 50/60 Hz
• Rated current (In): 2.5 A
• Thermal adjustment range: 1.6-2.5 A
• Overcurrent trip: 39 A
• Rated operational voltage (Ue): 690 V AC 50/60 Hz
• Rated impulse withstand voltage (Uimp): 6 kV
• Breaking capacity (Icu): 100 kA at 230/240 V, 400/415 V, 440 V, 500 V AC; 3 kA at 690 V AC
• Motor power: 0.75 kW at 400/415 V AC; 1.1 kW at 500 V AC; 1.5 kW at 690 V AC
• Usage category: Category A (IEC 60947-2); AC-3, AC-3e (IEC 60947-4-1)
• Connection type: Screw terminal, tightening torque 1.7 N.m
• Mounting: 35 mm symmetrical DIN rail (snap-on) or panel with adapter plate
• IP protection: IP20 per IEC 60529
• IK rating: IK04
• Operating temperature: -20...60 °C
• Storage temperature: -40...80 °C
• Dimensions (W x H x D): 45 x 89 x 78.5 mm
• Weight: 0.26 kg
• Certifications: CCC, UL, CSA, EAC, ATEX, UKCA, BV, RINA, DNV-GL, LROS

Features and benefits:

• Thermomagnetic protection technology provides both thermal overload and short-circuit trip functions in a single compact device
• Integrated phase-loss sensitivity protects motors from single-phase conditions
• Rated for continuous duty with 100,000 mechanical and 100,000 electrical operating cycles
• Suitable for isolation per IEC 60947-1, eliminating the need for a separate disconnector
• Supports both horizontal and vertical handle mounting positions

Applications:

• Direct-on-line starting and protection for small AC motors up to 0.75 kW at 400/415 V
• Motor protection in industrial automation and control panels
• Machine building applications requiring compact 3-pole thermomagnetic protection
• HVAC motor circuits per IEC/EN 60335-2-40 Annex JJ
• Marine and offshore panel installations (DNV-GL, BV, RINA, LROS certified)

Compliant with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40 Annex JJ, and IEC/EN 60335-1 Clause 30.2. Part of the Schneider Electric TeSys Deca range.

Also known as: Schneider GV2ME07, Schneider Electric GV2ME07, TeSys GV2 motor circuit breaker, GV2ME07 motor protector.
