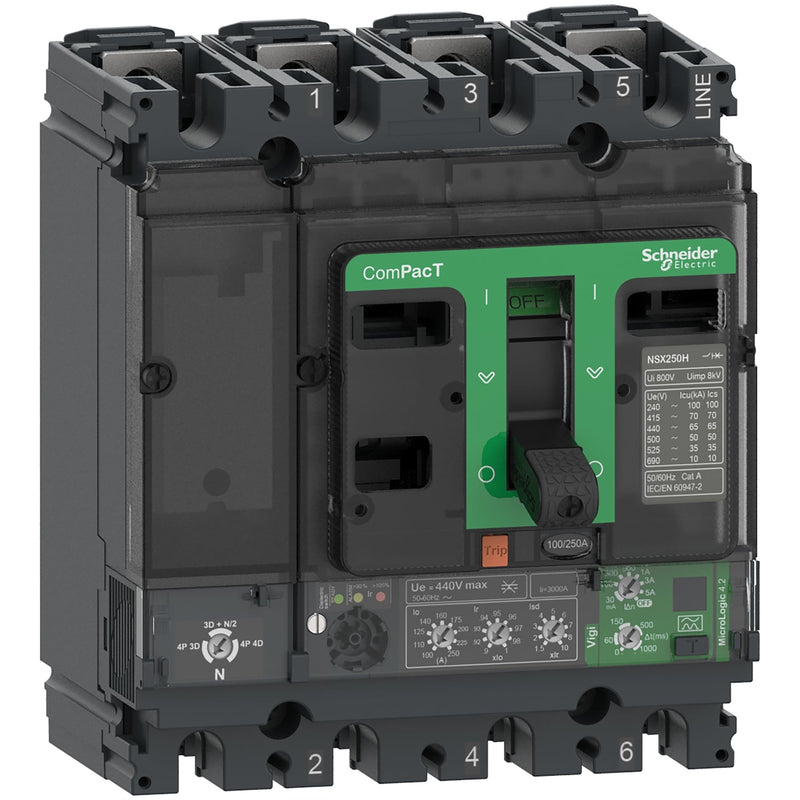

The Schneider Electric C25F44V250 is a 4-pole, 250 A molded case circuit breaker from the ComPacT NSX new generation range, fitted with the MicroLogic Vigi 4.2 electronic protection unit. Rated at 440 V AC with a rated ultimate breaking capacity (Icu) of 36 kA at 380/415 V AC per IEC 60947-2, it combines overcurrent and integrated earth leakage protection for electrical power distribution systems.

Technical specifications:

• Commercial reference: C25F44V250
• Manufacturer: Schneider Electric
• EAN:
• Series / range: ComPacT NSX new generation (NSX250F)
• Product type: Circuit breaker with integrated earth leakage protection
• Number of poles: 4P
• Rated current [In]: 250 A at 40°C
• Rated voltage [Ue]: 440 V AC 50/60 Hz
• Network type: AC, 50/60 Hz
• Rated ultimate breaking capacity [Icu]: 36 kA at 380/415 V AC; 85 kA at 220/240 V AC (IEC 60947-2)
• Performance level: F
• Protection unit: MicroLogic 4.2, electronic, LSoIR function
• Long-time pick-up [Ir]: adjustable 100-250 A (9 settings)
• Short-time pick-up [Isd]: adjustable 1.5-10 x Ir
• Instantaneous pick-up [Ii]: 3000 A (fixed)
• Earth leakage sensitivity [In]: adjustable 30 mA to 5 A
• Earth leakage time delay [t]: adjustable 0 ms to 1 s
• Earth leakage protection class: Class A
• Rated insulation voltage [Ui]: 500 V AC
• Rated impulse withstand voltage [Uimp]: 8 kV
• Mounting: Fixed, back plate
• Connection: Front upper and lower, 35 mm
• Neutral position: Left
• Auxiliary slots: 5
• Dimensions (W x H x D): 140 x 161 x 86 mm
• Weight: 2.8 kg
• IP rating: IP40 (IEC 60529)
• IK rating: IK07 (IEC 62262)
• Operating temperature: -25 to 70°C
• Standard: EN/IEC 60947-2

Features and benefits:

• MicroLogic Vigi 4.2 electronic unit delivers overload (L), short-time delay (So), instantaneous (I), and residual current (R) protection in a single integrated device.
• Adjustable earth leakage sensitivity from 30 mA to 5 A with selectable time delays from 0 ms to 1 s enables precise coordination in tiered distribution networks.
• Class A residual current protection covers both AC and pulsating DC fault currents.
• Thermal memory active for 20 minutes before and after tripping prevents premature reconnection of overloaded circuits.
• LED local indication signals device ready (green), 90% Ir overload warning (orange), and 105% Ir overload alarm (red).

Applications:

• Main and sub-distribution boards in commercial and industrial buildings requiring combined overcurrent and earth fault protection.
• Protection of large loads, motors, and transformers in industrial switchboards and process control panels.
• Installations requiring Class A residual current protection with selective coordination against downstream devices.
• High-current feeder circuits where adjustable trip thresholds and earth leakage sensitivity are essential.

Compliant with EN/IEC 60947-2. Part of the Schneider Electric ComPacT NSX new generation range.
