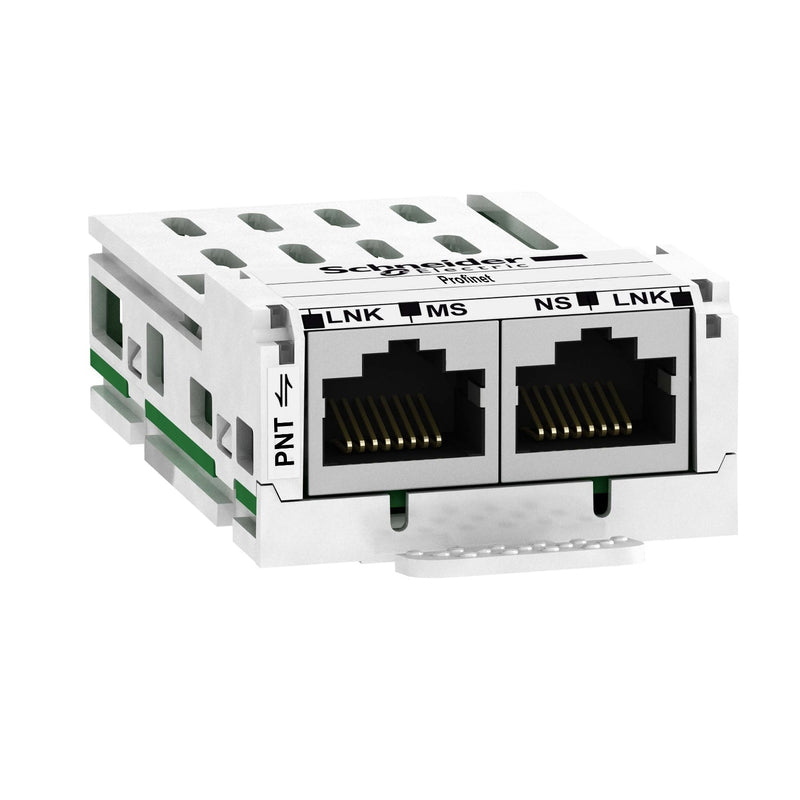

Schneider VW3A3627 Altivar PROFINET Communication Module

The Schneider Electric VW3A3627 is a PROFINET communication module designed for integration with Altivar variable speed drives. It enables PROFINET network connectivity with PROFIdrive communication profile support, allowing seamless industrial automation control over Ethernet at 100 Mbit/s transfer speed.

Technical specifications:

• Commercial reference: VW3A3627
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Altivar
• Product type: Communication module
• Compatible drives: Altivar Process ATV600, Altivar Machine ATV340 (except Sercos drives), Altivar Machine ATV320, Altivar 32, Altivar Process Modular, Altivar Process ATV900
• Communication protocol: PROFINET, Link Layer Discovery Protocol (LLDP)
• Communication profile: PROFIdrive
• Electrical connection: 2 x RJ45 connectors, Ethernet
• Transfer speed: 100 Mbit/s
• LED indicators: MS (module status), NS (network status), TX/RX port 1, TX/RX port 2
• Product weight: 0.3 kg
• Standard: IEC 61800-7-201 (CiA 402)

Features and benefits:

• Dual RJ45 Ethernet ports for flexible network topology integration
• PROFINET protocol support with PROFIdrive profile for standardized drive control
• Link Layer Discovery Protocol (LLDP) support for automatic network topology detection
• Four LED indicators for real-time diagnostics of module and network status
• Wide drive compatibility across multiple Altivar series (ATV320, ATV340, ATV600, ATV900)
• Compact and lightweight design at 0.3 kg for easy installation

Applications:

• Industrial automation systems requiring PROFINET-based variable speed drive control
• Process control applications using Altivar Process ATV600 or ATV900 drives
• Machine automation with Altivar Machine ATV320 or ATV340 drives
• Factory automation networks demanding standardized PROFIdrive communication
• Multi-drive PROFINET network architectures in manufacturing environments

Compliant with IEC 61800-7-201 (CiA 402). Part of the Schneider Electric Altivar range.

Also known as: Schneider VW3A3627, Schneider Electric VW3A3627, Altivar PROFINET module, VW3A3627 communication card.
