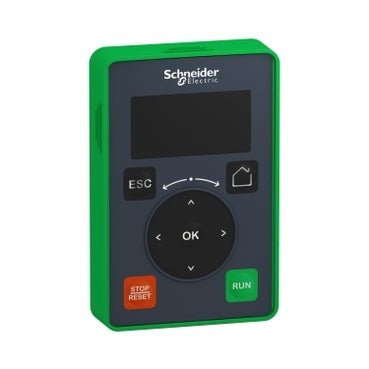

Schneider VW3A1113 Altivar Drive Accessory

The Schneider Electric VW3A1113 is a display terminal for Altivar variable speed drives, providing a backlit LCD interface for control, parameter adjustment, and configuration. It features a 128 x 64 pixel resolution screen with a 2-line message capacity and IP21 protection rating. Compatible with Easy Altivar 610 and Altivar Machine ATV340 drive families.

Technical specifications:

• Commercial reference: VW3A1113
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Altivar
• Compatible product groups: Easy Altivar 610, Altivar Machine ATV340
• Accessory category: Signalling and display accessories
• Accessory type: Display terminal
• Display type: Backlit LCD, white
• Display resolution: 128 x 64 pixels
• Message lines: 2
• IP protection rating: IP21
• Operating temperature: -15...50 °C
• Product weight: 0.05 kg
• User languages: French, German, English, Spanish, Italian, Chinese
• Real-time clock: No

Features and benefits:

• Enables full control, adjustment, and configuration of compatible Altivar variable speed drives
• Supports reading and display of current drive operating values
• Allows saving and uploading drive configurations for quick commissioning or replacement
• Backlit LCD display ensures readability in low-light industrial environments
• Multi-language menu support across six languages for international deployments
• Compact and lightweight at 0.05 kg, suitable for panel door or remote mounting

Applications:

• Commissioning and parameterization of Altivar ATV340 and Easy Altivar 610 drives on machine panels
• Remote configuration and monitoring of variable speed drives in industrial automation systems
• Configuration backup and restore during drive replacement in production lines
• Operator interface for drive status monitoring in HVAC, conveyor, and pump applications

Part of the Schneider Electric Altivar drive accessories range, designed for use with Easy Altivar 610 and Altivar Machine ATV340 series.

Also known as: Schneider VW3A1113, Schneider Electric VW3A1113, Altivar display terminal, ATV340 display accessory.
