Schneider VW3A1104R10 Altivar remote cable 1m for graphic display terminal

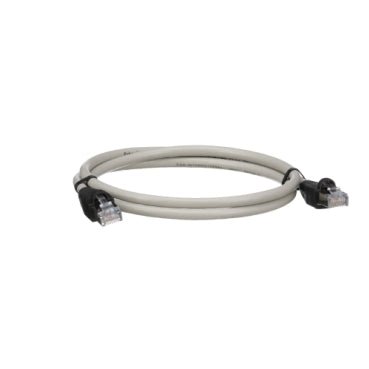

The VW3A1104R10 is a 1-metre connection cable from Schneider Electric, designed to remotely connect a graphic display terminal to compatible Altivar variable speed drives. Fitted with RJ45 connectors on both ends, it extends the interface between the drive and its display for flexible control panel layouts. The cable weighs 0.05 kg and is compatible with a broad range of Altivar and Altistart drive families.

Technical specifications:

• Commercial reference: VW3A1104R10
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Altivar
• Product type: Connection cable
• Accessory category: Connection accessory
• Accessory type: Extension cable
• Special purpose: Remote graphic display
• Cable length: 1 m
• Connection type: RJ45
• Electrical connection: 2 male connectors
• Compatible accessories: VW3M1701, VW3A1101
• Product weight: 0.05 kg
• Warranty: 18 months

Features and benefits:

• 1-metre cable length allows the graphic display terminal to be mounted remotely from the drive
• RJ45 connectors on both ends provide a secure and reliable interface connection
• Broad compatibility across Altivar 12, 32, 61, 61Q, 71, 71Q, 212, 312, 312 Solar, ATV320, ATV340, ATV600, ATV900, Easy Altivar 310, Easy Altivar 610, Altistart 22, and Lexium 32 families
• Lightweight at 0.05 kg, adding minimal load to panel installations
• Compatible with both VW3M1701 and VW3A1101 display accessories

Applications:

• Positioning a remote graphic display terminal away from the drive in industrial control panels
• Variable speed drive installations where the operator interface must be located at a different panel position
• Machine control cabinets using Altivar or Altistart variable frequency drives
• Automation systems requiring a remotely located display for drive monitoring and parameter adjustment

Part of the Schneider Electric Altivar range.

Also known as: Schneider VW3A1104R10, Schneider Electric VW3A1104R10, Altivar remote display cable, VFD graphic display extension cable.
