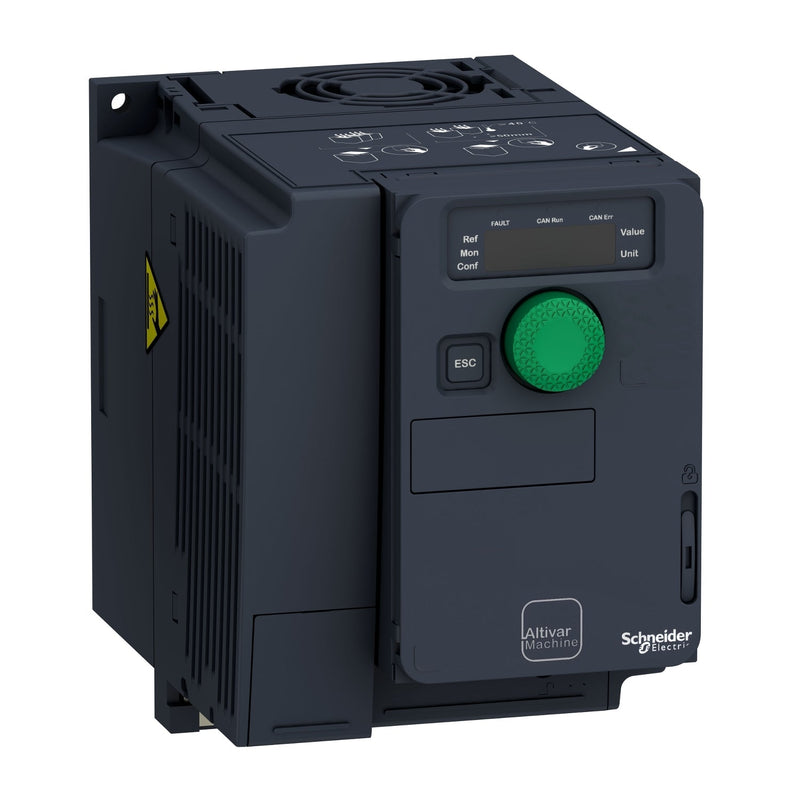

Schneider ATV320U07N4C Altivar ATV320 VFD 0.75 kW 380-500V Compact

The ATV320U07N4C is a Schneider Electric Altivar Machine ATV320 compact variable frequency drive for 0.75 kW three-phase motors on 380...500 V supply. It supports sensorless flux vector and U/f motor control profiles with a rated output current of 2.3 A and an integrated Class C2 EMC filter. Built-in STO and SS1 functional safety functions are included as standard.

Technical specifications:

• Commercial reference: ATV320U07N4C
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Altivar Machine ATV320
• Product type: Variable frequency drive (VFD)
• Motor power: 0.75 kW (demanding applications)
• Supply voltage: 380...500 V -15...+10%, 3-phase
• Rated output current: 2.3 A
• Max output voltage: 500 V
• Line current: 3.6 A at 380 V / 2.8 A at 500 V
• Apparent power: 2.4 kVA at 500 V
• Network frequency: 50...60 Hz
• Short-circuit current (Isc): 5 kA
• Switching frequency: 2...16 kHz adjustable, rated 4 kHz
• Max output frequency: 599 Hz
• Transient overtorque: 170...200% of rated torque
• Digital inputs: 7 (incl. STO, pulse input 0...30 kHz on DI5)
• Digital outputs: 3 (open collector, 30 V DC, 100 mA)
• Analog inputs: 3 (10-bit; AI1 0...10 V, AI2 +/-10 V differential, AI3 0...20 mA)
• Analog outputs: 1 (AQ1: 0...20 mA or 0...10 V, software configurable)
• Relay outputs: R1 (NO/NC configurable), R2 (NO configurable), 100,000 cycles
• Communication: Modbus serial, CANopen built-in; optional EtherCAT, Profibus DP V1, Profinet, Ethernet/IP, DeviceNet, Ethernet Powerlink
• Safety functions: STO, SS1, SLS (Safely Limited Speed)
• EMC filter: Class C2 integrated
• IP rating: IP20
• Mounting: Wall mount, vertical +/- 10 degrees
• Dimensions (W x H x D): 105 x 142 x 158 mm
• Weight: 1.2 kg
• Power dissipation: 32.0 W at 380 V, 4 kHz switching frequency
• Environmental class: 3C3 and 3S2 per IEC 60721-3-3
• Standard: IEC 61800-5-1
• Certifications: CE, ATEX, UL, CSA, EAC, RCM

Features and benefits:

• Multiple motor control modes - sensorless flux vector, U/f (2- and 5-point), and Energy Saving variants - for both asynchronous and synchronous motors
• Integrated braking resistor and DC injection braking enable controlled stopping without external braking hardware
• Built-in STO, SS1, and SLS functional safety reduces wiring and eliminates the need for additional external safety relays
• Four-quadrant operation with transient overtorque up to 200% of rated torque suits demanding machine cycles
• Integrated Class C2 EMC filter and optional fieldbus communication modules for Profinet, EtherCAT, and Ethernet/IP simplify panel design

Applications:

• Variable speed control of small three-phase motors on complex industrial and OEM machines
• Conveyor, pump, and fan systems requiring precise speed and torque regulation
• Compact automation panels where wall-mount installation and integrated fieldbus connectivity are required
• Safety-critical machinery where STO or SLS must be implemented without additional external components

Compliant with IEC 61800-5-1 and EMC standards IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, and IEC 61000-4-11. Part of the Schneider Electric Altivar Machine ATV320 range.

Also known as: Schneider ATV320U07N4C, Schneider Electric ATV320U07N4C, Altivar 320 0.75 kW VFD, ATV320 frequency inverter.
