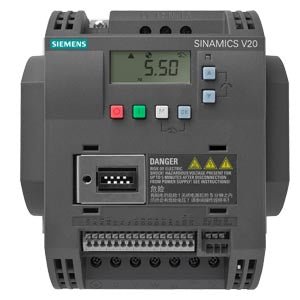

Siemens 6SL3210-5BE31-1UV0 SINAMICS V20 Converter 11kW 3AC 380-480V Unfiltered

The Siemens 6SL3210-5BE31-1UV0 is a SINAMICS V20 basic converter with a rated output power of 11 kW (Low Overload and High Overload), designed for 3-phase AC input at 380-480 V. It operates without an integrated EMC filter and includes an integrated braking chopper, making it suitable for variable speed drive applications requiring compact, wall-mounted installation.

Technical specifications:

• MLFB: 6SL3210-5BE31-1UV0
• Manufacturer: Siemens
• Product line: SINAMICS V20
• Input: 3 AC, 380-480 V (-15% / +10%), 47-63 Hz
• Rated power (LO / HO): 11.00 kW / 15.00 hp
• Rated current (LO / HO / IN): 25.00 A
• Output voltage: 400 V (IEC) / 480 V (NEC)
• Output frequency: 0-550 Hz
• Pulse frequency: 4.00 kHz
• Overload (LO): 110% for 60 s, cycle time 300 s
• Overload (HO): 150% for 60 s, cycle time 300 s
• Filter class: Unfiltered
• Integrated braking chopper: Yes
• Communication: USS, Modbus RTU
• Digital inputs: 4
• Digital outputs: 1 relay changeover contact, 1 transistor
• Analog inputs: 2 (usable as additional digital inputs)
• Analog outputs: 1
• Cooling: External fan
• Degree of protection: IP20 / UL open type
• Frame size: FSD
• Mounting: Through-hole / wall / side-by-side
• Installation altitude: 1,000 m
• Operating temperature: -10 to 60 °C (derate above 40 °C)
• Storage temperature: -40 to 70 °C
• Max. relative humidity: 95%
• Max. shielded motor cable: 25 m
• Max. unshielded motor cable: 50 m
• Power factor: 0.72
• Offset factor cos: 0.95
• Efficiency: 0.98 (IE2 efficiency class)
• Dimensions (W x H x D): 240.0 x 206.5 x 172.5 mm
• Net weight: 3.70 kg
• Standards: CE, cULus, C-Tick (RCM), KC
• CE marking: EN 61800-5-1, EN 60204-1, EN 61800-3

Features and benefits:

• Integrated braking chopper eliminates the need for an external unit in deceleration-heavy applications
• Wide input voltage range (380-480 V) supports use across IEC and NEC installations
• USS and Modbus RTU communication allow direct integration with PLCs and automation systems
• Analog inputs can be reconfigured as digital inputs, increasing I/O flexibility
• Side-by-side mounting capability reduces panel space requirements
• IE2 efficiency class with measured losses per IEC 61800-9-2

Applications:

• Variable speed control of 3-phase AC motors in pump and fan systems
• Conveyor and material handling drives requiring controlled acceleration and deceleration
• Industrial machinery where Modbus RTU or USS communication to a PLC is required
• Installations where an external EMC filter is fitted at system level (unfiltered variant)
• Panel-mounted drive systems with space constraints benefiting from side-by-side mounting

Compliant with EN 61800-5-1, EN 60204-1, and EN 61800-3. Part of the Siemens SINAMICS V20 range.

Also known as: Siemens 6SL3210-5BE31-1UV0, SINAMICS V20 11kW unfiltered converter, Siemens V20 FSD frame drive.
