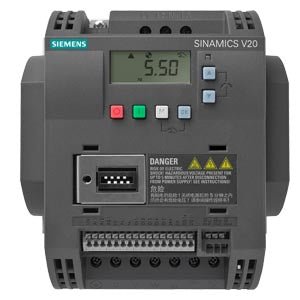

Siemens 6SL3210-5BE15-5UV0 SINAMICS V20 Inverter 0.55kW 3AC 400V Unfiltered

The Siemens 6SL3210-5BE15-5UV0 is a SINAMICS V20 frequency inverter rated at 0.55 kW (0.75 hp) for three-phase 400 V IEC applications. Designed for variable-speed motor control, it accepts a wide input voltage range of 380-480 V AC and delivers a rated output current of 1.70 A in both Low Overload and High Overload modes.

Technical specifications:

• MLFB: 6SL3210-5BE15-5UV0
• Manufacturer: Siemens
• Product line: SINAMICS V20
• Input phases: 3 AC
• Input voltage: 380-480 V (-15% / +10%)
• Input frequency: 47-63 Hz
• Rated power (LO/HO): 0.55 kW / 0.75 hp
• Rated output current: 1.70 A
• Output voltage: 400 V (IEC) / 480 V (NEC)
• Output frequency range: 0-550 Hz
• Pulse frequency: 4.00 kHz
• Overload (LO): 110% rated current for 60 s, cycle 300 s
• Overload (HO): 150% rated current for 60 s, cycle 300 s
• Filter class: Unfiltered
• Integrated braking chopper: No
• Communication: USS, Modbus RTU
• Digital inputs: 4
• Digital outputs: 1 relay changeover, 1 transistor
• Analog inputs: 2 (usable as additional digital inputs)
• Analog outputs: 1
• Degree of protection: IP20 / UL open type
• Frame size: FSA
• Cooling: Convection
• Ambient temperature (operation): -10 to 60 °C
• Max. relative humidity: 95%
• Installation altitude: up to 1,000 m
• Motor cable length: shielded 10 m, unshielded 50 m
• Mounting: Wall mounting / side-by-side mounting
• Dimensions (W x H x D): 90.0 x 150.0 x 145.5 mm
• Net weight: 0.90 kg
• Efficiency class: IE2
• Efficiency: 0.98
• Standards: CE, cULus, C-Tick (RCM), KC
• CE directives: EN 61800-5-1, EN 60204-1, EN 61800-3

Features and benefits:

• Wide input voltage tolerance (380-480 V) suits varied supply conditions
• High Overload capability of 150% for 60 s supports demanding start cycles
• Integrated USS and Modbus RTU communication for easy PLC integration
• Compact FSA frame with side-by-side mounting minimises panel space
• Broad output frequency range (0-550 Hz) covers a wide range of motor types
• IE2 efficiency class with 98% efficiency reduces operating energy costs

Applications:

• Variable-speed control of small three-phase motors in conveyor systems
• Pump and fan speed regulation in building services and HVAC installations
• Light industrial machinery requiring USS or Modbus RTU control integration
• Applications requiring compact drive solutions in space-limited control panels

Compliant with EN 61800-5-1, EN 60204-1, and EN 61800-3. Part of the Siemens SINAMICS V20 range.

Also known as: Siemens 6SL3210-5BE15-5UV0, SINAMICS V20 0.55kW inverter, Siemens V20 frequency converter 400V.
