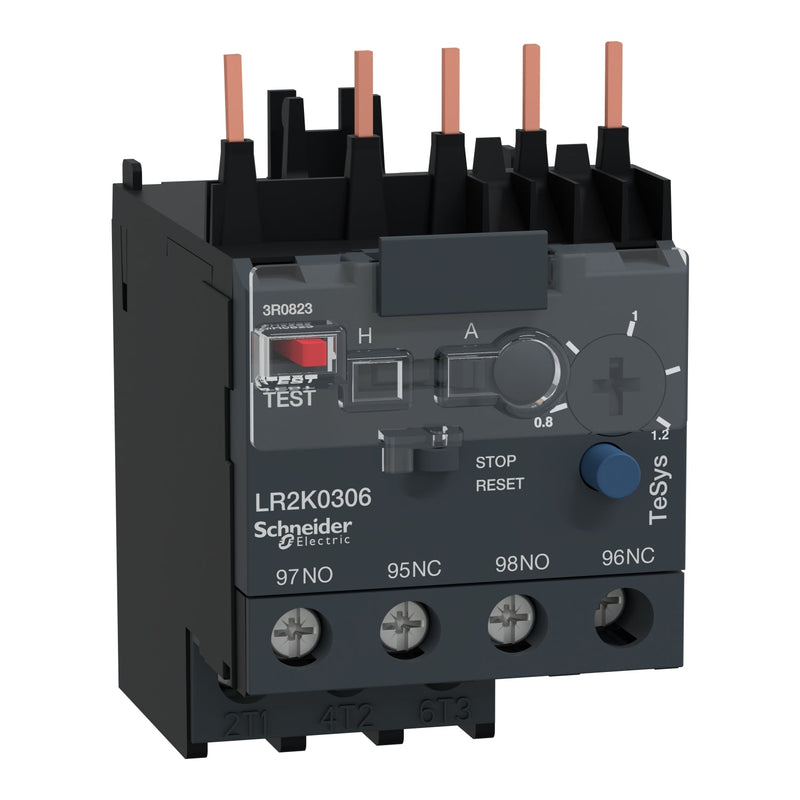

Schneider LR2K0306 TeSys K Overload Relay 0.8-1.2A Class 10A Direct Mount

The Schneider Electric LR2K0306 is a TeSys K differential thermal overload relay designed for motor protection, with an adjustable current setting range of 0.8 to 1.2 A and Class 10A trip classification per IEC 60947-4-1. It mounts directly below LC1K, LC7K, LP4K, and LP1K contactors, delivering integrated overload protection in compact motor starter assemblies on both AC and DC networks.

Technical specifications:

• Commercial reference: LR2K0306
• Manufacturer: Schneider Electric
• EAN:
• Series / range: TeSys K (TeSys LRK)
• Product type: Differential thermal overload relay
• Relay function: Motor protection
• Thermal overload setting: 0.8...1.2 A
• Trip class: Class 10A per IEC 60947-4-1
• Network type: AC / DC
• Rated insulation voltage: 690 V (IEC 60947 / BS 4941), 750 V (VDE 0110 group C), 600 V (CSA C22.2 No 14)
• Rated impulse withstand voltage: 6 kV
• Auxiliary contacts: 1 NO + 1 NC
• Thermal current - signal circuit: 6 A
• Signal circuit voltage: 690 V AC (AC-15), 250 V DC (DC-13)
• Power dissipation per pole: 2 W
• Phase loss sensitivity: Yes (IEC 60947-4-1)
• Network frequency: up to 400 Hz
• Connection type: Screw terminal blocks, 1.5...4 mm² solid / 0.75...4 mm² flexible
• Tightening torque: 1.3 N.m
• Dimensions (W x H x D): 45 x 58 x 65 mm
• Weight: 0.145 kg
• IP rating: IP2x (IEC 60529)
• Operating temperature: -20...55 °C without characteristic change (IEC 60947)
• Operating altitude: up to 2000 m without characteristic change
• Certifications: UL, CSA, UKCA
• Standards: IEC 60947, NF C 63-650, BS 4941, VDE 0660

Features and benefits:

• Phase loss sensitivity detects single-phasing conditions, protecting motors from overheating and damage
• Yellow trip indicator gives clear local visual signaling when the relay has operated
• Red test button allows functional verification of the trip mechanism without disconnecting the circuit
• Blue stop button and front selector switch enable either manual or automatic reset after tripping
• Direct under-contactor mounting for LC1K, LC7K, LP4K, and LP1K reduces panel wiring and footprint

Applications:

• Motor overload protection in industrial control panels and machine tools
• Direct-on-line and reversing starter assemblies using TeSys K contactors
• Pump, fan, and compressor protection in building services installations
• Compact OEM motor starters requiring contactor-mounted thermal protection

Compliant with IEC 60947-4-1, NF C 63-650, BS 4941, and VDE 0660. Part of the Schneider Electric TeSys K range.

Also known as: Schneider LR2K0306, Schneider Electric LR2K0306, TeSys K thermal overload relay, motor overload relay 1.2A.
