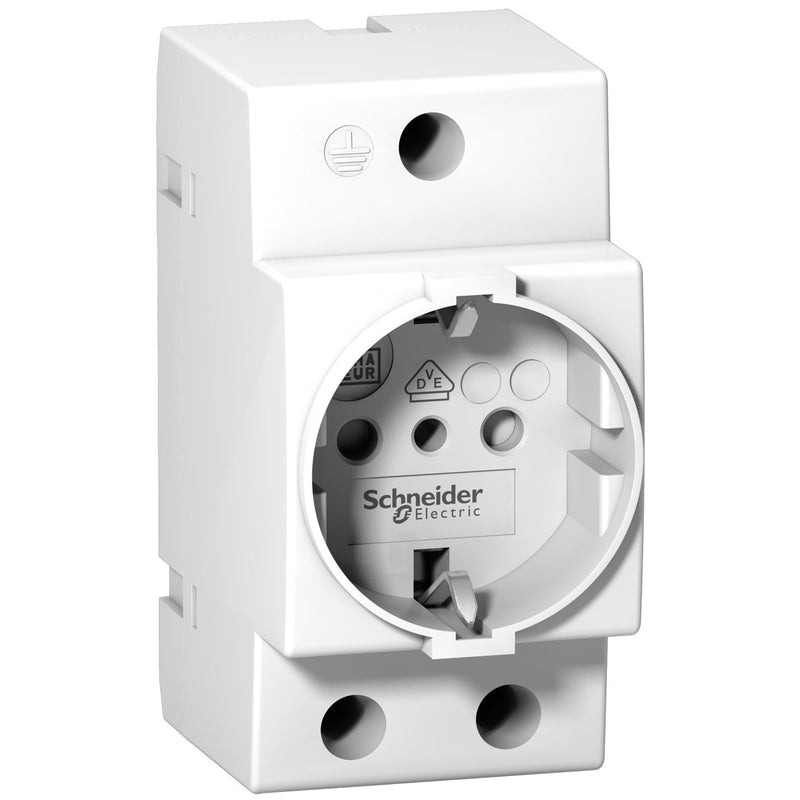

A9A15303 DIN socket iPC - 2P+E - 16A - 250VAC - IEC 2316 - italian std

Acti9 iPC Modular Power Socket - 16A 2P+E

The Acti9 iPC is a reliable and practical modular power socket designed for connecting low-voltage devices to the electrical network. This product ensures safety and durability, meeting professional electrical installation standards.

Key Features:

• Type: 16A 2P+E socket with pole protection cover
• Color: White
• Connection Torque: 1.2 Nm (using PZ2 screwdrivers)
• Compatible Cables:
  • Solid copper cables up to 10 mm²
  • Flexible or ferrule-tipped copper cables up to 6 mm²
• Dimensions: 44 mm (W) x 87 mm (H) x 60 mm (D)
• Module Width: 5 (9 mm pitch)
• Weight: 98 g
• Protection Rating: IP20 at terminals, IP40 at housing

Compliance:

• Conforms to IEC 60884 and IMQ IEC 2350 standards

The Acti9 iPC socket is an ideal choice for modular installations, offering robust performance and flexibility for various electrical applications.
