Schneider A9D31610 Acti9 iDPN N Vigi RCBO 1P+N 10 A C 30mA Type AC

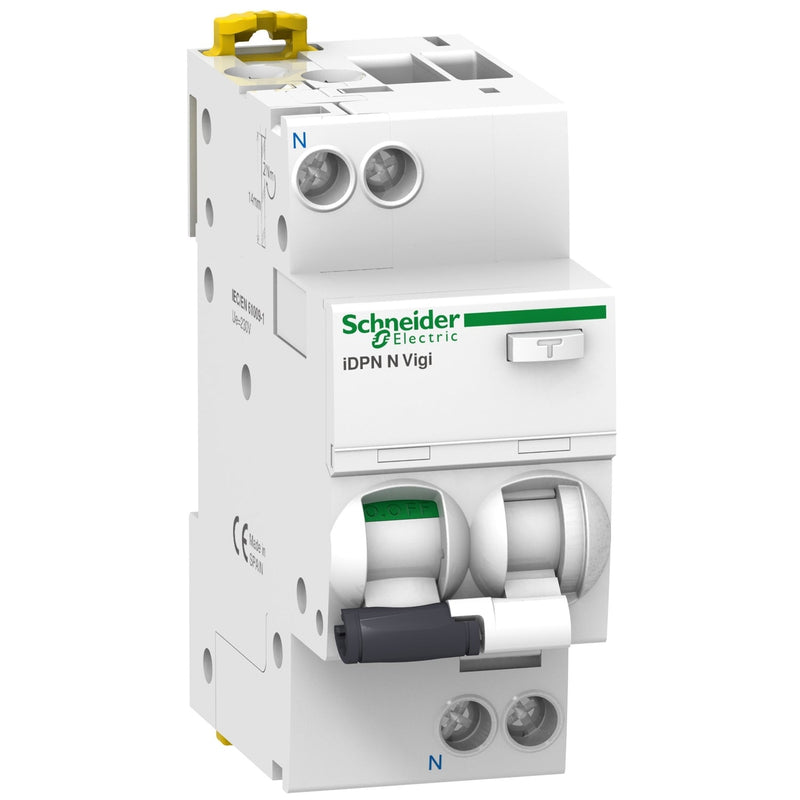

The Schneider Electric A9D31610 is a 1P+N RCBO from the Acti 9 iDPN N Vigi range, combining thermomagnetic overcurrent protection with integrated Type AC residual current protection. Rated 10 A with a Type C curve and 30 mA sensitivity, it delivers a breaking capacity of 6000 A Icn at 230-240 V AC 50 Hz in a compact 36 mm wide module.

Technical specifications:

• Commercial reference: A9D31610
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Acti 9 iDPN N Vigi
• Product type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Number of poles: 1P+N
• Rated current [In]: 10 A
• Rated voltage [Ue]: 230-240 V AC 50 Hz
• Network type: AC
• Tripping curve: C
• Protection technology: Thermomagnetic
• Breaking capacity [Icn]: 6000 A at 230-240 V AC 50 Hz
• Residual current sensitivity: 30 mA
• Residual protection class: Type AC
• Residual trip delay: Instantaneous
• Rated insulation voltage [Ui]: 400 V AC
• Rated impulse withstand voltage [Uimp]: 4 kV
• Width x Height x Depth: 36 x 85 x 73 mm
• Weight: 125 g
• Mounting: Snap-on system, DIN rail
• Connection terminals: 1-16 mm² rigid / 1-10 mm² flexible (upper or lower)
• Tightening torque: 2 N.m
• IP protection: IP20 / IP40 (in modular enclosure)
• Operating temperature: -5 to 60°C
• Mechanical / electrical endurance: 20,000 cycles each
• Certifications: VDE, GOST
• Standards: EN/IEC 61009-2-1

Features and benefits:

• Integrated residual current and thermomagnetic overcurrent protection in one compact 1P+N device
• Instantaneous Type AC residual current detection with independent trip technology
• Snap-on DIN rail mounting with comb busbar compatibility (upper or lower) for fast panel assembly
• Contact position indicator and local ON/OFF/Fault trip signaling for clear status visibility
• Locking device option for tamper prevention and circuit security

Applications:

• Residential and light commercial final distribution boards
• Socket outlet circuits requiring combined overcurrent and residual current protection
• Bathroom and outdoor circuit protection in domestic electrical installations
• Consumer units and modular enclosures where space-saving 1P+N RCBOs are required

Compliant with EN/IEC 61009-2-1. Part of the Schneider Electric Acti 9 range.

Also known as: Schneider A9D31610, Schneider Electric A9D31610, iDPN N Vigi RCBO 10A 30mA Type AC.
