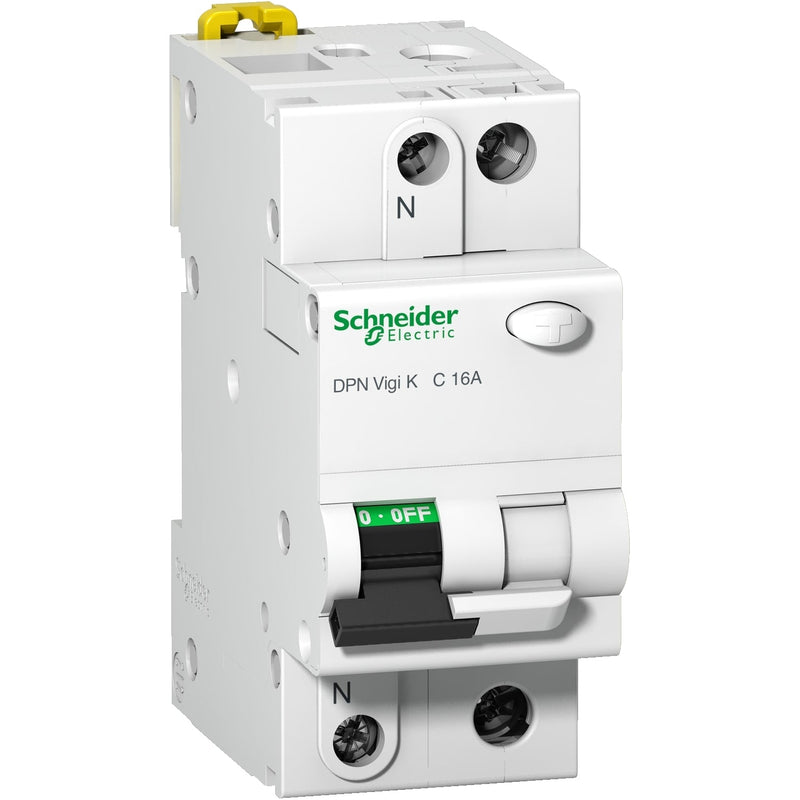

Schneider A9D20616 Acti9 DPN Vigi K RCBO 1P+N 16 A C 30mA Type AC

The Schneider Electric A9D20616 is an Acti 9 DPN Vigi K RCBO rated 16 A (1P+N, C curve) with 30 mA Type AC residual current sensitivity and a 6000 A breaking capacity at 220-240 V AC. It combines thermomagnetic overcurrent protection with integrated instantaneous earth fault protection for electrical power distribution applications.

Technical specifications:

• Commercial reference: A9D20616
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Acti 9
• Number of poles: 1P + N
• Rated current [In]: 16 A
• Tripping curve: C
• Rated voltage: 220-240 V AC, 50 Hz
• Breaking capacity [Icn]: 6000 A
• Service breaking capacity [Ics]: 6000 A (100% Icn)
• Residual current sensitivity: 30 mA, Type AC, instantaneous
• Rated impulse withstand voltage [Uimp]: 4 kV
• Limitation class: 3
• IP rating: IP20 / IP40 (in modular enclosure)
• Operating temperature: -5 to 40°C
• Dimensions (W x H x D): 36 x 81 x 72 mm
• Weight: 125 g
• Mounting: DIN rail, clip-on
• Connection terminals: phase 1-25 mm² rigid / 1-16 mm² flexible; neutral 1-16 mm² rigid / 1-10 mm² flexible
• Mechanical and electrical durability: 20,000 cycles each
• Certifications: VDE
• Standard: EN/IEC 61009-2-1

Features and benefits:

• Integrated RCD eliminates the need for a separate residual current device
• Type AC sensitivity detects sinusoidal earth fault currents with instantaneous response
• C curve thermomagnetic trip suits loads with moderate inrush currents
• Contact position indicator with ON, OFF, and Fault trip local signaling for quick status checks
• Left-side neutral positioning with 9 mm phase-to-neutral spacing supports modular board wiring

Applications:

• Final distribution boards in residential and light commercial installations
• Socket outlet circuit protection where earth fault protection is required
• Single-phase circuits in modular consumer units and DIN rail enclosures
• Space-constrained panels requiring combined overcurrent and residual current protection

Compliant with EN/IEC 61009-2-1. Part of the Schneider Electric Acti 9 range.

Also known as: Schneider A9D20616, Schneider Electric A9D20616, Acti9 DPN Vigi K RCBO 16A.
