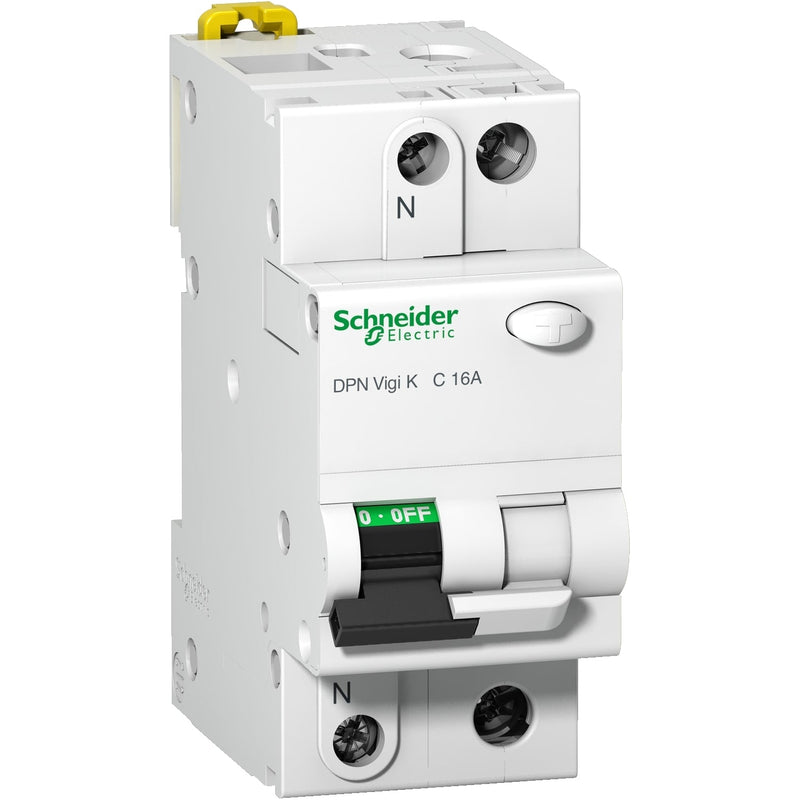

Schneider A9D20610 Acti9 DPN Vigi K RCBO 1P+N 10 A C 30mA Type AC

The Schneider Electric A9D20610 is an Acti 9 DPN Vigi K RCBO (Residual Current Circuit Breaker with Overcurrent Protection) in 1P+N configuration with a 10 A rated current and C tripping characteristic. It provides 30 mA differential protection of Type AC with an instantaneous operating delay, combined with a 6000 A breaking capacity at 220-240 V AC 50 Hz.

Technical specifications:

• Commercial reference: A9D20610
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Acti 9
• Device short name: DPN Vigi K
• Product type: RCBO - Residual Current Circuit Breaker with Overcurrent Protection
• Number of poles: 1P+N
• Number of protected poles: 1
• Neutral conductor position: Left
• Rated current [In]: 10 A
• Network type: AC
• Tripping curve: C
• Overcurrent trip technology: Thermomagnetic
• Magnetic trip range: 5-10 x In
• Differential sensitivity: 30 mA
• Differential class: Type AC
• Differential trip delay: Instantaneous
• Differential trip technology: Independent
• Breaking capacity [Icn]: 6000 A at 220-240 V AC 50 Hz per EN/IEC 61009-2-1
• Service breaking capacity [Ics]: 6000 A (100% x Icn) at 220-240 V AC 50 Hz per EN/IEC 61009-2-1
• Making and breaking capacity [Idm]: 4500 A at 220-240 V AC 50 Hz per EN/IEC 61009-2-1
• Limitation class: 3 per EN/IEC 61009-2-1
• Rated voltage [Ue]: 220-240 V AC 50 Hz
• Rated insulation voltage [Ui]: 400 V AC 50 Hz
• Rated impulse withstand voltage [Uimp]: 4 kV
• Network frequency: 50 Hz
• Dimensions (WxHxD): 36 x 81 x 72 mm
• Weight: 125 g
• Color: White (RAL 9003)
• Mounting: Click-on system, DIN rail
• Phase spacing: 9 mm between phase and neutral
• Connection - phase terminal: Tunnel terminal 1-25 mm² rigid / 1-16 mm² flexible
• Connection - neutral terminal: Tunnel terminal 1-16 mm² rigid / 1-10 mm² flexible
• Strip length: 15 mm
• Tightening torque: 2 N.m
• IP rating: IP20 per IEC 60529 / IP40 in modular enclosure per IEC 60529
• Pollution degree: 3
• Overvoltage category: III per IEC 60364
• Operating temperature: -5 to 40 °C
• Storage temperature: -30 to 70 °C
• Relative humidity: 95% at 55 °C
• Mechanical endurance: 20000 cycles
• Electrical endurance: 20000 cycles
• Certifications: VDE
• Standard: EN/IEC 61009-2-1

Features and benefits:

• Combined overcurrent and residual current protection in a single 2-module (36 mm wide) device, saving panel space.
• Type AC differential protection detects sinusoidal residual currents with instantaneous trip response at 30 mA.
• 6000 A breaking capacity with 100% rated service breaking capacity for reliable fault clearance in final distribution circuits.
• Integrated contact position indicator with ON, OFF, and Fault trip local signaling for quick status identification.
• Click-on DIN rail mounting with 9 mm phase-neutral spacing for straightforward installation alongside other Acti 9 devices.
• Neutral conductor positioned on the left, with independent differential trip technology ensuring protection even under specific fault conditions.

Applications:

• Final distribution boards in residential and light commercial installations requiring combined overload, short-circuit, and earth-fault protection.
• Protection of socket outlet circuits where Type AC residual current detection is required by wiring regulations.
• Bathroom, kitchen, and outdoor circuit protection in domestic installations where a single-module RCBO per circuit is preferred over shared RCDs.
• Small commercial and office distribution panels where space-saving combined protection devices are required on individual final circuits.

Compliant with EN/IEC 61009-2-1 and certified to VDE standards. Part of the Schneider Electric Acti 9 range.

Also known as: Schneider A9D20610, Schneider Electric A9D20610, Acti9 DPN Vigi K 10A RCBO, Schneider 1P+N 30mA Type AC RCBO.
