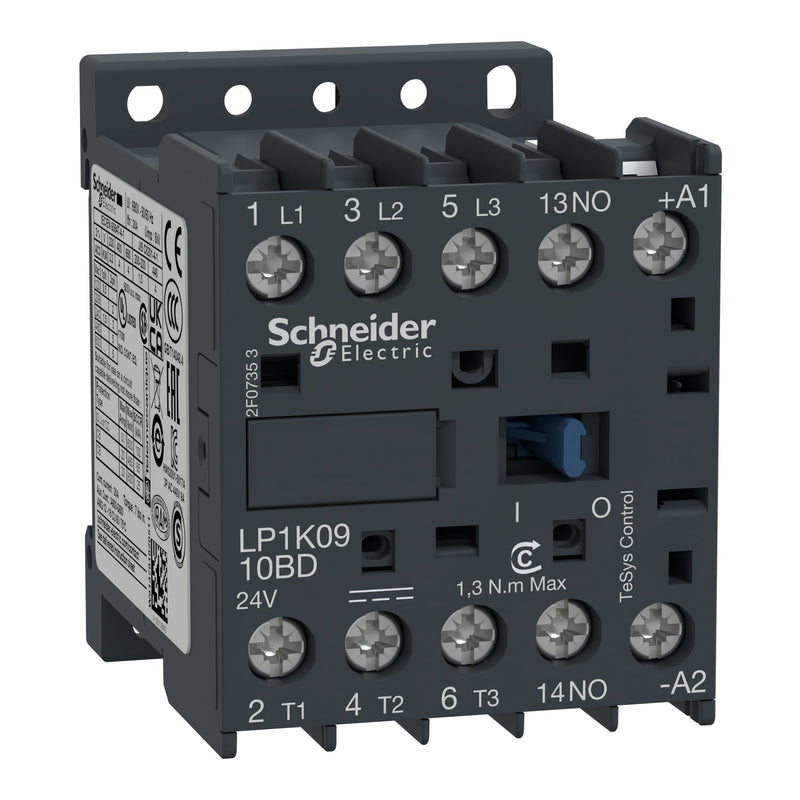

Schneider LP1K0910BD TeSys K Contactor 3P 9 A 24V DC Coil

The Schneider Electric LP1K0910BD is a TeSys K 3-pole contactor rated at 9 A / 440 V AC (AC-3) with a 24 V DC coil, designed for motor control and resistive load switching up to 4 kW in industrial and building automation panels.

Technical specifications:

• Commercial reference: LP1K0910BD
• Manufacturer: Schneider Electric
• EAN:
• Series / range: TeSys K
• Poles and contacts: 3P, 3 NO main + 1 NO auxiliary (instantaneous)
• Rated current (Ie): 9 A at <= 440 V AC (AC-3); 20 A at <= 690 V AC (AC-1)
• Rated voltage (Ue): <= 690 V AC
• Usage categories: AC-3, AC-3e, AC-1, AC-4
• Motor power: 2.2 kW at 220-230 V / 4 kW at 380-440 V (AC-3, 50/60 Hz)
• Control circuit: 24 V DC standard type
• Rated impulse withstand voltage (Uimp): 8 kV, overvoltage category III
• Breaking capacity: 110 A at 380-400 V (IEC 60947)
• Maximum operating rate: 3600 cycles/h
• Mechanical durability: 10 million cycles; electrical durability: 1.3 million cycles (9 A AC-3)
• Dimensions (W x H x D): 45 x 58 x 57 mm
• Weight: 0.225 kg
• IP protection: IP2x
• Operating temperature: -25 to 50°C
• Mounting: DIN rail or plate
• Connection: screw terminals, 1.5-4 mm² solid / 0.75-4 mm² flexible
• Standards: EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Certifications: CE, UKCA, UL, CSA, CCC, EAC, CB Scheme

Features and benefits:

• 3-pole 3 NO main contacts plus 1 NO auxiliary for interlocking or signaling circuits
• 24 V DC coil with only 3 W holding power, directly compatible with standard PLC outputs
• Rated for up to 3600 operations per hour with a mechanical life of 10 million cycles
• DIN rail or plate mounting with screw terminals accepting both solid and flexible conductors
• Certified for CE, UKCA, UL, CSA, CCC, and EAC markets, supporting global project deployment

Applications:

• Direct-on-line motor starters for pumps, fans, and conveyors up to 4 kW
• Machine tool and production line control panels
• Building services automation including HVAC and compressor starting
• PLC-based automation systems using 24 V DC control circuits

Compliant with EN/IEC 60947-4-1 and EN/IEC 60947-5-1. Part of the Schneider Electric TeSys K range.

Also known as: Schneider LP1K0910BD, Schneider Electric LP1K0910BD, TeSys K contactor 9A 24V DC, 3-pole motor contactor 24VDC coil.
