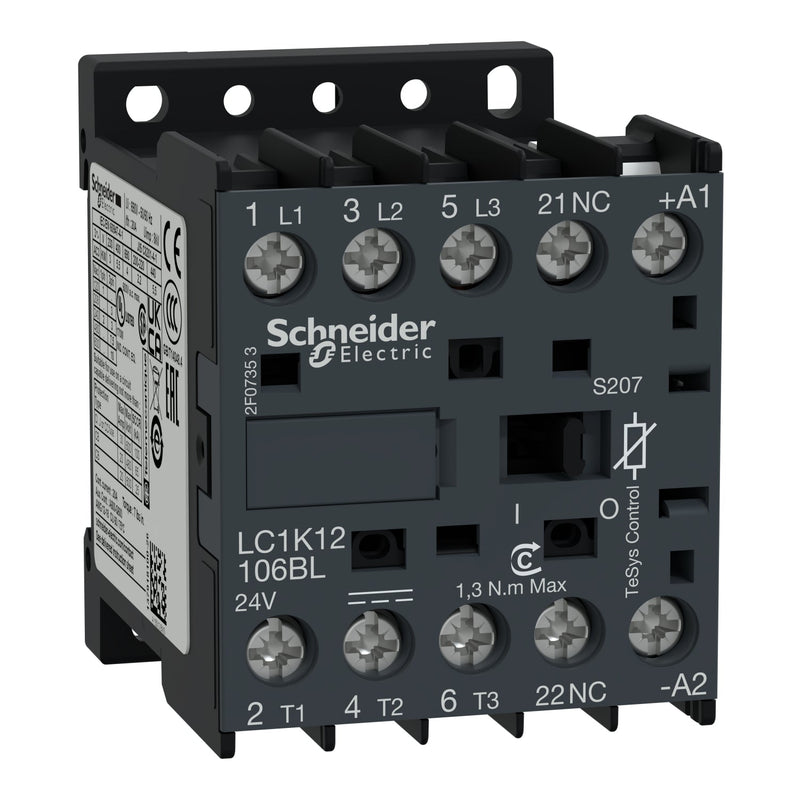

Schneider LC1K12106BLS207 TeSys K Contactor 12 A 440V 24V DC low consumption 1NO

The Schneider Electric LC1K12106BLS207 is a compact 3-pole TeSys K contactor rated 12 A AC-3 at up to 440V, suitable for motors up to 5.5 kW at 400V. A 1NO auxiliary contact is built into the unit. The 24V DC low consumption coil and compact footprint make the TeSys K series well suited to space-constrained panels and machine builder applications.

Technical specifications:

• Part number: LC1K12106BLS207
• Manufacturer: Schneider Electric
• Series: TeSys K (LC1K)
• Poles: 3P (3NO main contacts)
• AC-3 rated current: 12 A
• AC-3 rated voltage: up to 440V AC
• Motor power: up to 5.5 kW at 400V
• Auxiliary contact: 1NO (built-in)
• Coil voltage: 24V DC low consumption
• Terminals: Screw clamp
• Standards: IEC/EN 60947-4-1, CE

Features and benefits:

• Built-in 1NO auxiliary - included for indication and run feedback without a separate contact block
• Compact TeSys K footprint - ideal for space-constrained machine builder panels
• AC-3 rated for motor switching - handles inductive motor loads without derating

Applications:

• DOL motor starters for small motors up to 5.5 kW in compact panel designs
• Machine builder panels requiring a small-footprint contactor with integrated auxiliary
• Conveyor, pump, and fan control where panel space is limited

Also known as: Schneider LC1K12106BLS207, TeSys K 12 A contactor 24V DC low consumption coil, LC1K 12 A 1NO compact contactor.
