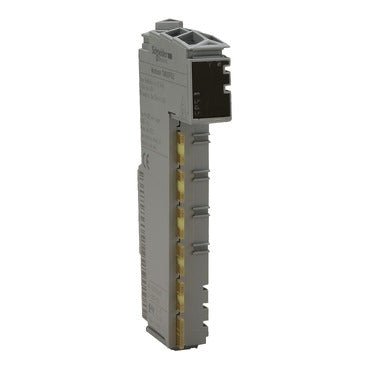

Schneider TM5SPS3 Power Distribution Module, Modicon TM5, For Canopen Interface

The Schneider Electric TM5SPS3 is a 24 V DC power distribution module for the Modicon TM5 system, designed to supply I/O modules and the CANopen or Sercos III communication bus. It provides up to 10 A for the I/O segment and 750 mA for the TM5 bus, with a maximum power dissipation of 1.91 W.

Technical specifications:

• Commercial reference: TM5SPS3
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Modicon TM5
• Product type: Power distribution module
• Rated voltage: 24 V DC
• Network type: DC
• TM5 bus current supply: 750 mA (-10...55°C), 500 mA (55...60°C)
• I/O segment current supply: 10 A
• Current consumption: 25 mA at 24 V DC
• Maximum power dissipation: 1.91 W
• Short-circuit protection: 10 A external fuse
• Operating temperature: -10...55°C horizontal / -10...50°C vertical
• Storage temperature: -40...70°C
• Relative humidity: 5...95%, non-condensing
• Storage altitude: 0...3000 m
• Vibration resistance: 1 gn (8.4...150 Hz), 3.5 mm (5...8.4 Hz) on DIN rail
• Shock resistance: 15 gn for 11 ms
• Standards: IEC 61131-2, UL 508, CSA C22.2 No 142, CSA C22.2 No 213
• Certifications: CE, cULus, CSA, C-Tick, GOST-R

Features and benefits:

• Simultaneously powers TM5 I/O modules and CANopen or Sercos III fieldbus in a single module
• Compatible with Modicon LMC078, LMC058, and M258 logic and servo controllers
• 10 A external fuse provides short-circuit protection for the I/O segment
• Wide operating range from -10°C to 60°C suits demanding industrial environments
• Plastic-free, PVC-free, and mercury-free construction supports sustainability compliance
• Globally certified (cULus, CSA, C-Tick, GOST-R) for international panel builds

Applications:

• Power distribution within Modicon TM5 I/O expansion assemblies
• Machine automation panels using CANopen or Sercos III fieldbus architectures
• Motion and servo control cabinets built around Modicon LMC controllers
• Industrial control panels requiring IEC 61131-2 compliant power modules

Compliant with IEC 61131-2, UL 508, CSA C22.2 No 142, and CSA C22.2 No 213. Part of the Schneider Electric Modicon TM5 range.

Also known as: Schneider TM5SPS3, Schneider Electric TM5SPS3, Modicon TM5 power supply module, TM5 bus power distribution module.
