Schneider BMXNOC0401 Network Module, Modicon M340, Ethernet/IP And Modbus/TCP, 4

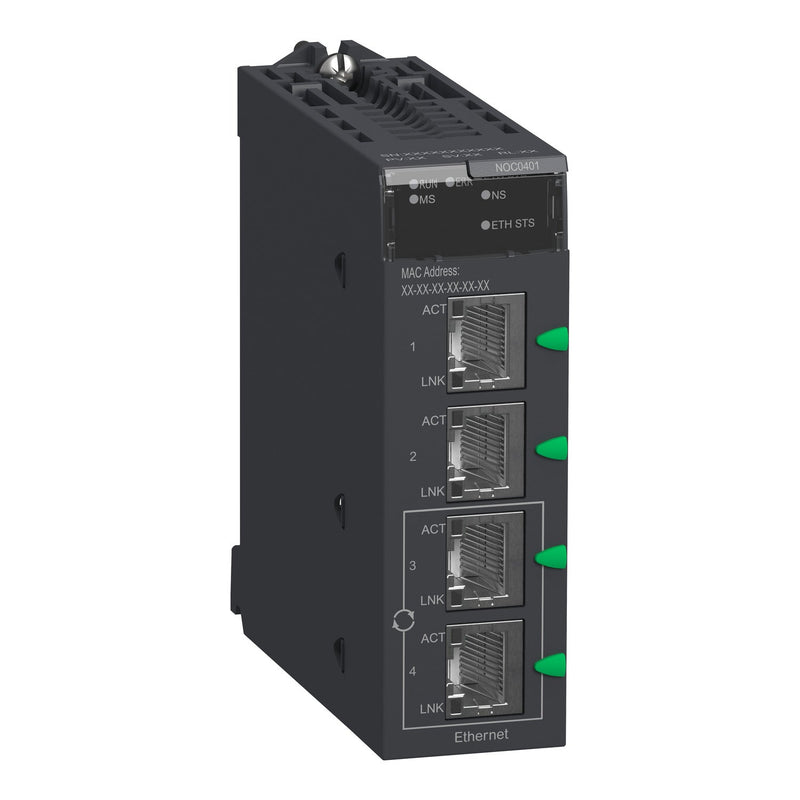

The Schneider Electric BMXNOC0401 is an Ethernet TCP/IP network module for the Modicon M340 automation platform, featuring 4 x RJ45 10/100 Mbit/s ports and supporting both Modbus TCP and Ethernet/IP I/O scanning and communication.

Technical specifications:

• Commercial reference: BMXNOC0401
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Modicon M340 automation platform
• Product type: Ethernet TCP/IP network module
• Concept: Transparent Ready, class B30
• Integrated connectivity: 4 x RJ45 Ethernet 10/100 Mbit/s, twisted pair
• Ethernet port standard: 10BASE-T/100BASE-TX
• Built-in 4-port switch: Yes, with RSTP support and port mirroring
• Communication services: Modbus TCP I/O scanning, Ethernet/IP I/O scanning, SNMP network management, FDR server, bandwidth management, Data Editor (via PC), standard web server activation
• Power supply: Internal, via backplane
• Current consumption: 555 mA at 3.3 V DC
• Local signaling: RUN LED (green), ERR LED (red), ETH STS LED (amber), MS LED (green/red), NS LED (green/red)
• Module format: Standard
• Weight: 0.2 kg
• Operating temperature: 0...60 °C
• Relative humidity: 10...95%, non-condensing
• IP protection rating: IP20
• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX Zone 2/22, IECEx Zone 2/22
• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, EN/IEC 60079-0
• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC), 2014/34/EU (ATEX)
• Warranty: 18 months

Features and benefits:

• 4-port integrated Ethernet switch enables direct ring or star network topologies without additional hardware
• Supports both Modbus TCP and Ethernet/IP protocols for broad industrial network compatibility
• RSTP support and port mirroring provide network redundancy and simplified diagnostics
• Certified for ATEX Zone 2/22 and IECEx Zone 2/22, suitable for use in hazardous locations
• Built-in FDR server and SNMP management simplify device replacement and network monitoring

Applications:

• Connecting Modicon M340 PLCs to Ethernet/IP and Modbus TCP industrial networks
• Automation panels requiring hazardous area (Zone 2/22) certification
• Process control and manufacturing systems with SCADA or DCS integration via Ethernet
• Machine automation with redundant network topologies using RSTP

Compliant with EN/IEC 61131-2, EN/IEC 61010-2-201, EN/IEC 61850-3, and EN/IEC 61000-6-5. Part of the Schneider Electric Modicon M340 automation platform.

Also known as: Schneider BMXNOC0401, Schneider Electric BMXNOC0401, Modicon M340 Ethernet module, M340 network communication module.
