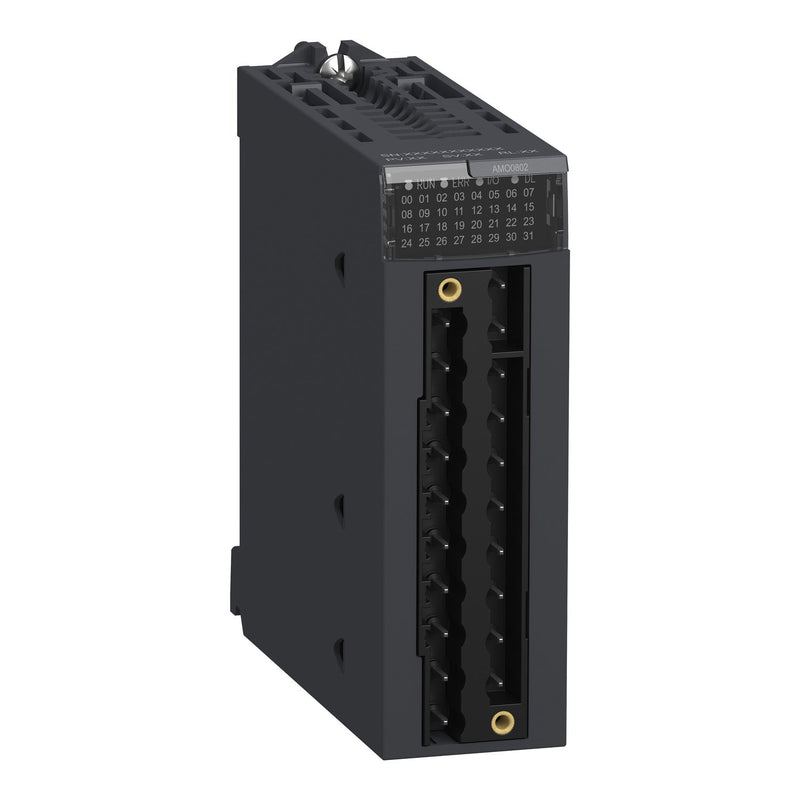

Schneider BMXAMO0802 Non Isolated Analog Output Module, Modicon X80, 8 Outputs 0

The Schneider Electric BMXAMO0802 is a non-isolated analog output module for the Modicon X80 / M340 PLC platform, delivering 8 current outputs at 0...20 mA or 4...20 mA with 16-bit resolution. Measurement accuracy is within 0.25% of full scale across 0...60°C, with open-circuit and short-circuit fault detection for channel-level diagnostics.

Technical specifications:

• Commercial reference: BMXAMO0802
• Manufacturer: Schneider Electric
• EAN:
• Series / range: Modicon X80
• Number of analog outputs: 8
• Output type: Current - 0...20 mA / 4...20 mA
• Output resolution: 16 bits
• Measurement error: <=0.25% of full scale (0...60°C); 0.1% at 25°C
• Temperature drift: 45 ppm/°C
• Conversion time: <=4 ms
• Load impedance: <=350 Ohm
• Isolation between channels: Non-isolated
• Isolation voltage: 1400 V DC (channel to ground; channel to bus)
• Electrical connection: 20 terminals, 1 connector
• Power supply: Internal via rack
• Power consumption: 3.6 W at 24 V DC typical; 3.9 W maximum
• MTBF: 1,500,000 hours
• Operating temperature: 0...60°C
• Storage temperature: -40...85°C
• IP protection rating: IP20
• Product weight: 0.15 kg
• Certifications: CE, RCM, CSA, EAC, Merchant Navy, UL
• Standards: EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201

Features and benefits:

• 16-bit resolution across all 8 channels enables high-precision analog current output control
• Open-circuit detection (4...20 mA) and short-circuit detection (0...20 mA) support channel-level fault diagnostics
• Adjustable or predefined output fallback behavior ensures safe process response during PLC fault conditions
• Per-channel LED indicators plus dedicated RUN, ERR, and I/O status LEDs for fast visual diagnostics

Applications:

• Precision process control loops in M340 / Modicon X80 PLC-based automation systems
• Industrial panel control of variable-speed drives, control valves, and positioners via 4...20 mA signals
• Machine and manufacturing automation requiring high-accuracy analog outputs with built-in fault detection

Compliant with EN/IEC 61010-2-201 and EN/IEC 61131-2. Part of the Schneider Electric Modicon X80 range.

Also known as: Schneider BMXAMO0802, Schneider Electric BMXAMO0802, Modicon M340 analog output module, M340 8-channel current output module.
