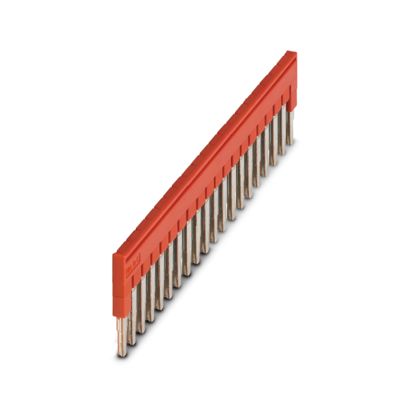

Phoenix Contact 3030226 FBS 20-5 Plug-in bridge 5.2mm 20-Way 24A Red

The Phoenix Contact FBS 20-5 is a 20-position plug-in bridge for use in the CLIPLINE complete modular terminal block system, enabling up to 50 terminal blocks to be bridged in a single insertion step. With a 5.2 mm pitch and a 24 A nominal current rating, it is well suited to power distribution and control panel wiring. Supplied in packs of 10, the bridge is manufactured in Germany from copper with PA insulation.

Technical specifications:

• Part designation: FBS 20-5
• Catalog number: 3030226
• Manufacturer: Phoenix Contact
• EAN: 4017918188559
• Number of positions: 20
• Pitch: 5.2 mm
• Maximum load current: 24 A
• Color: red (RAL 3001)
• Conductor material: Copper
• Insulating material: PA
• Flammability rating: UL 94 V0
• Operating temperature (operation): -60°C to 110°C
• Operating temperature (assembly/actuation): -5°C to 70°C
• Mounting type: Plug-in
• Weight (excl. packing): 17 g
• Pack size: 10 pc
• Country of origin: Germany

Features and benefits:

• Bridges up to 50 terminal blocks simultaneously using the two bridge shafts of the CLIPLINE complete system
• Plug-in mounting allows fast, tool-free installation in the terminal block row
• Exceptionally wide operating temperature range from -60°C to 110°C for demanding environments
• UL 94 V0 rated PA insulation for reliable arc and flame resistance
• Compatible with the CUTFOX-FBS cutting tool for trimming bridges to custom lengths
• EU RoHS compliant with no exemptions; REACH SVHC content below 0.1 wt%

Applications:

• Paralleling groups of terminal blocks in industrial control panels
• Power and potential distribution across modular terminal block rows
• Switchgear and machine building wiring assemblies
• Process control and automation cabinet installations

Compliant with EU RoHS (no exemptions) and China RoHS. Flammability rated UL 94 V0. Part of the Phoenix Contact CLIPLINE complete modular terminal block system.

Also known as: Phoenix Contact FBS 20-5, Phoenix 3030226, Phoenix Contact 20-position plug-in jumper 5.2 mm pitch.
