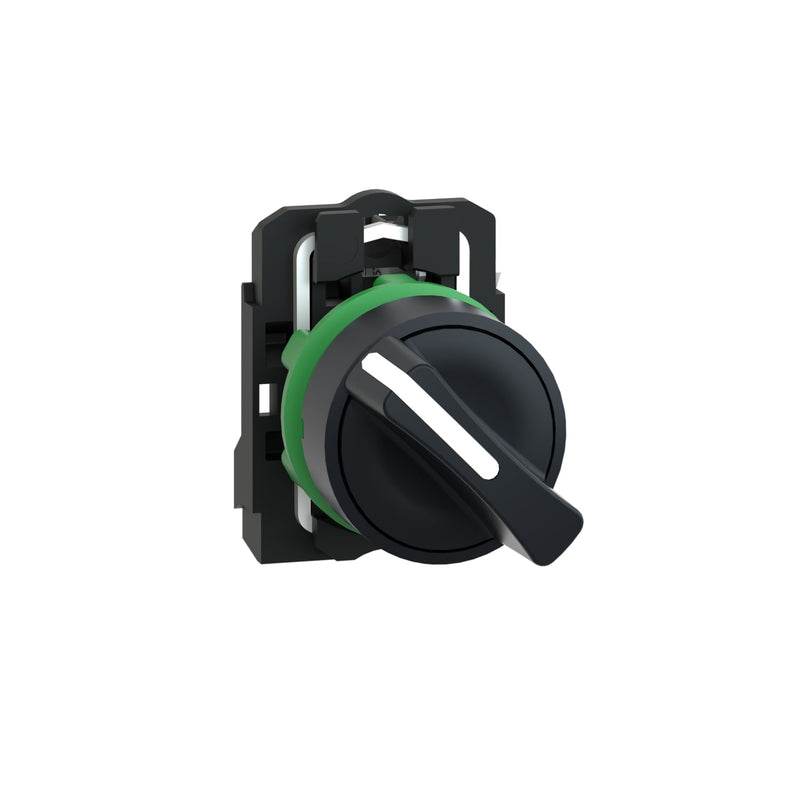

Schneider XB5AD21 Harmony XB5 Selector Switch 230VAC 2A

The Schneider Electric XB5AD21 is a Harmony XB5 series selector switch rated at 230VAC and 2A, available with options for control and signalling applications in industrial control panels.

Technical specifications:

• Range: Harmony XB5
• Product type: Selector switch
• Device name: XB5
• Insulation voltage: 600 V (pollution degree 3) conforming to IEC 60947-1
• Head type: Standard
• Operator profile: Black standard handle
• Terminals: Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to IEC 60947-1
• Tightening torque: 0.8...1.2 N.m conforming to IEC 60947-1
• Width: 30 mm
• Height: 42 mm
• Depth: 70 mm
• Weight: 0.043 kg
• Standards: IEC 60947-1
• IP rating: IP67 conforming to IEC 60529
• IK rating: IK04 conforming to IEC 50102
