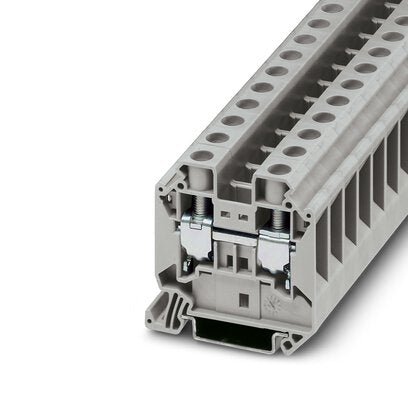

Phoenix Contact 3044199 UT 16 Feed-through terminal block 76A number of

The Phoenix Contact UT 16 is a 16 mm² feed-through terminal block rated at 1000 V nominal voltage and 76 A nominal current, using screw connection for conductor cross-sections from 1.5 mm² to 25 mm². Compact at 12.2 mm wide, it mounts on NS 35 DIN rail and supports a maximum load current of 101 A with a 25 mm² conductor.

Technical specifications:

• Part designation: UT 16
• Catalog number: 3044199
• Manufacturer: Phoenix Contact
• EAN: 4017918977535
• Nominal voltage: 1000 V
• Nominal current: 76 A
• Maximum load current: 101 A (with 25 mm² conductor)
• Conductor cross-section (rigid and flexible): 1.5 mm² - 25 mm²
• 2 conductors with same cross section: 1 mm² - 6 mm²
• Connection method: Screw connection, M5, tightening torque 2.5 - 3 Nm
• Stripping length: 14 mm
• Rated surge voltage: 8 kV
• Mounting type: NS 35/7.5, NS 35/15
• Dimensions (W x H x D): 12.2 mm x 55.5 mm x 54.4 mm
• Color: gray (RAL 7042)
• Insulating material: PA, flammability rating UL 94 V0
• Operating temperature range: -60°C to 110°C
• ATEX/IECEx: II 2 GD Ex eb IIC Gb
• Weight: 29.83 g (excluding packing)
• Pack size: 50 pc

Features and benefits:

• Maintenance-free and vibration-resistant connection using the patented Reakdyn principle
• Accepts two identical conductors simultaneously, reducing panel space requirements
• Low self-heating due to high contact forces for long-term connection stability
• Compatible with CLIPLINE complete system accessories for bridging, marking, and testing
• ATEX/IECEx certified and DIN EN 45545-2 compliant for railway and hazardous-area use

Applications:

• Railway industry control and power distribution panels
• Machine building and plant engineering electrical enclosures
• Process industry automation and wiring systems
• Hazardous location installations (ATEX/IECEx certified zones)

Compliant with IEC 60947-7-1, UL 94 V0 flammability standard, and DIN EN 45545-2 fire protection for rail vehicles. Part of the Phoenix Contact UT terminal block family within the CLIPLINE complete system.

Also known as: Phoenix Contact UT 16, Phoenix 3044199, feed-through terminal block 16 mm².
