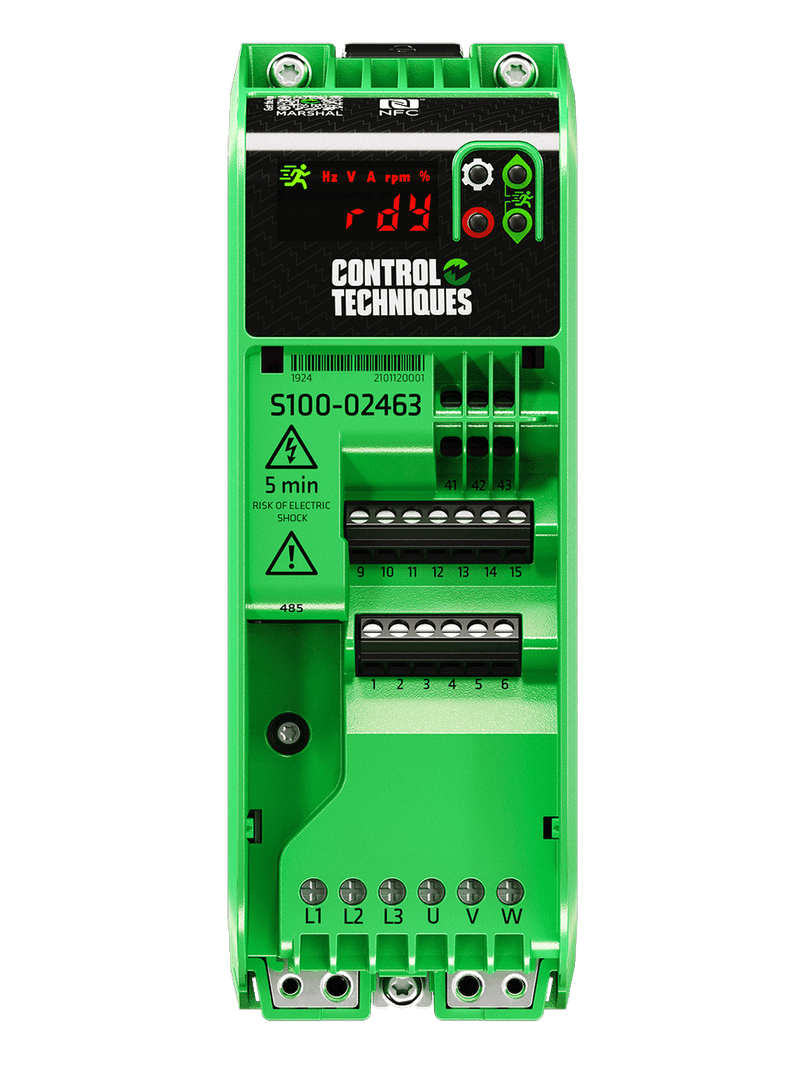

Nidec S100-02S41-0A0000 Commander S100 VFD 0.55kW 1Ph 230V 3.2A C1 Filter
Free Shipping
Get free shipping on orders exceeding €300!
The Nidec S100-02S41-0A0000 is a Commander S100 variable frequency drive (VFD) for single-phase 230V AC induction motors up to 0.55kW. It delivers smooth motor speed control with integrated C1 EMC filter and Modbus RTU communications, suitable for fans, pumps, compressors and conveyor drives.
Technical specifications:
- Part number: S100-02S41-0A0000
- Manufacturer: Nidec Control Techniques
- Series: Commander S100
- Motor power: 0.55kW
- Output current: 3.2A
- Input supply: 200-240V AC (+/-10%), 1Ph, 50/60Hz
- EMC filter: C1 (integrated)
- Motor control: V/f and open-loop vector
- Overload: 150% for 60 seconds
- Operating temperature: -10°C to 40°C (full load)
- IP rating: IP20
- Communications: Modbus RTU (RJ45)
Features and benefits:
- Integrated C1 EMC filter suitable for residential and light commercial environments
- NFC interface for smartphone configuration without opening the panel
- Catch-spinning-motor for smooth restart of a coasting motor
- Built-in PID controller for closed-loop process control
- Motor thermal protection with 4-entry fault history
- 0mm side-by-side mounting saves panel space
Applications:
- Variable speed control for fans, pumps and compressors
- Conveyor and materials handling drives
- Mixer, agitator and centrifuge applications
- HVAC air handling units
- General industrial variable speed applications
Compatible with single-phase AC induction motors.
Also known as: Nidec S100-02S41-0A0000, Commander S100 0.55kW 1Ph, VFD 0.55kW 230V, variable speed drive 0.55kW 1Ph 230V.
When sold out, you can still preorder by requesting a quote below.
