Nidec C200-04400170A10100AB100 Commander C200 VFD 7.5kW 3Ph 400V 17A
Free Shipping
Get free shipping on orders exceeding €300!

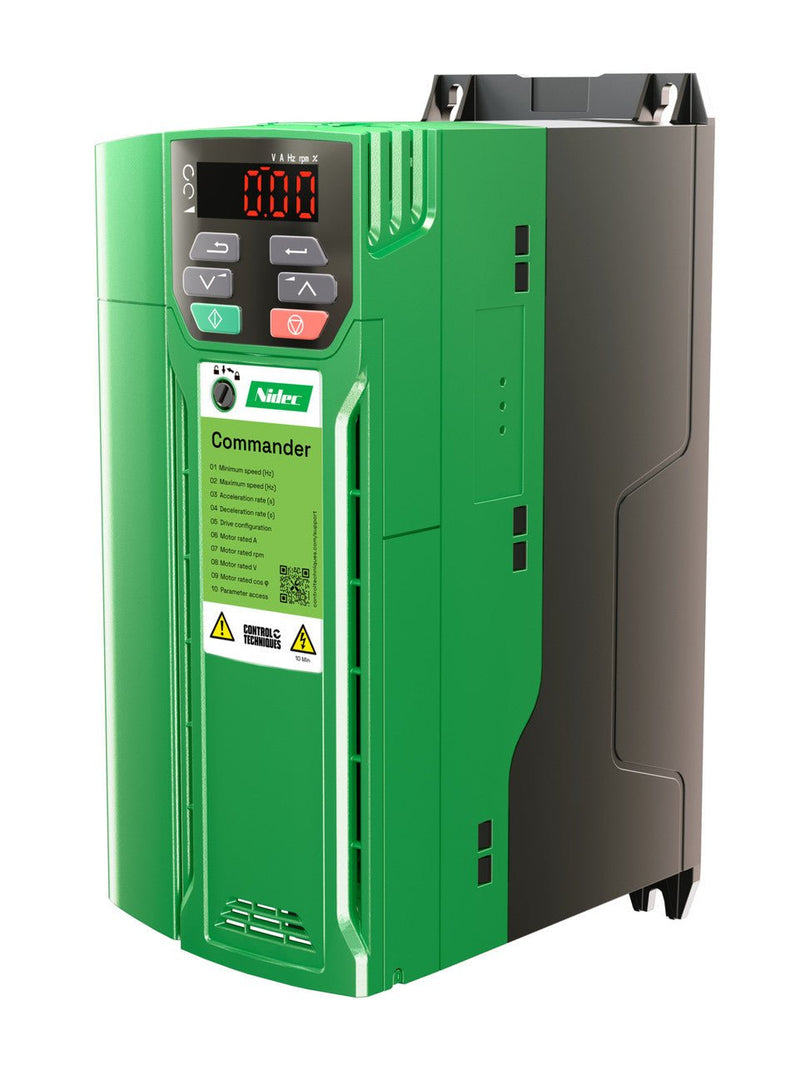

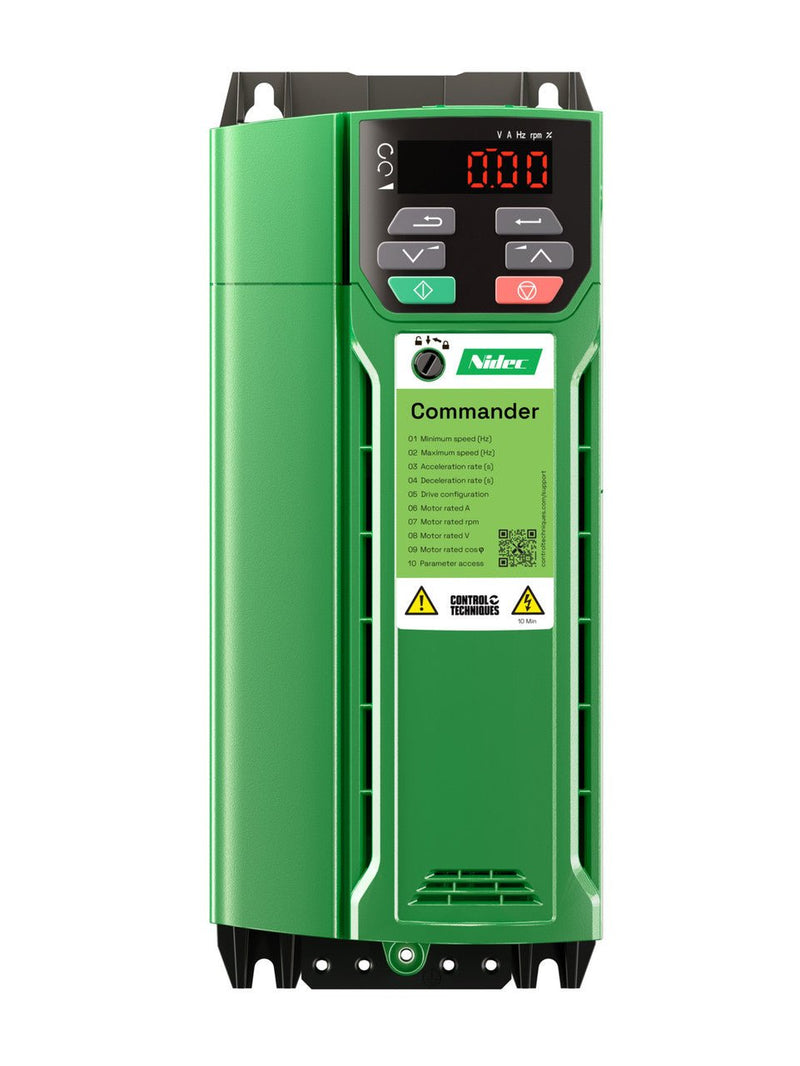

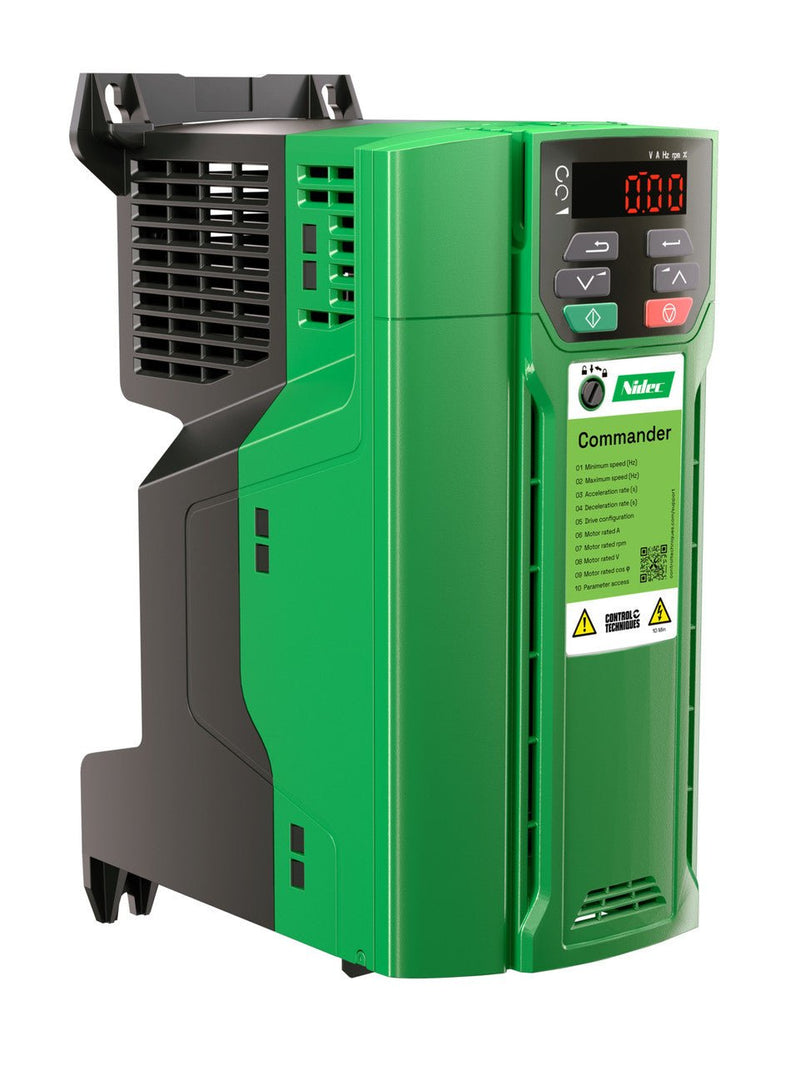

The Nidec C200-04400170A10100AB100 is a Commander C200 variable frequency drive (VFD) for three-phase 400V AC induction motors up to 7.5kW. It delivers smooth motor speed control and Modbus RTU communications, suitable for fans, pumps, compressors and conveyor drives.
Technical specifications:
- Part number: C200-04400170A10100AB100
- Manufacturer: Nidec Control Techniques
- Series: Commander C200
- Motor power: 7.5kW
- Output current: 17A
- Input supply: 380-480V AC (+/-10%), 3Ph, 50/60Hz
- Motor control: V/f and open-loop vector
- Overload: 150% for 60 seconds
- Operating temperature: -10°C to 40°C (full load)
- IP rating: IP20
- Communications: Modbus RTU (RJ45)
Features and benefits:
- Open-loop vector control for improved low-speed torque over V/f drives
- Built-in PID controller for closed-loop process control
- Auto-tune function for fast motor commissioning
- Motor thermal protection with fault history log
- Modbus RTU for integration with SCADA and PLC systems
Applications:
- Variable speed control for fans, pumps and compressors
- Conveyor and materials handling drives
- Mixer, agitator and centrifuge applications
- HVAC air handling units
- General industrial variable speed applications
Compatible with three-phase AC induction motors.
Also known as: Nidec C200-04400170A10100AB100, Commander C200 7.5kW 3Ph, VFD 7.5kW 400V, variable speed drive 7.5kW 3Ph 400V.
