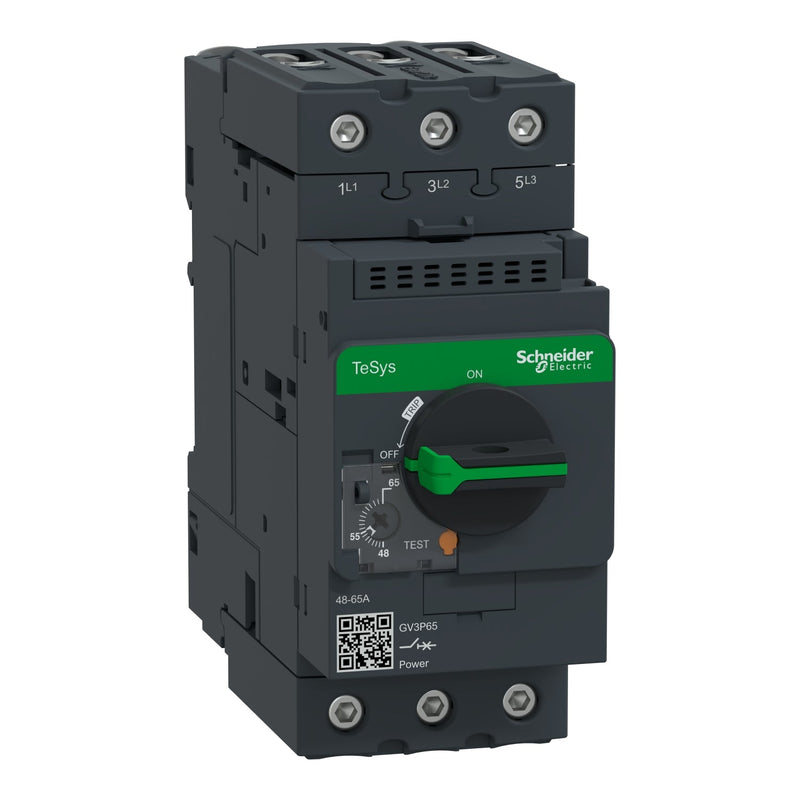

Schneider GV3P65 TeSys Deca Motor Circuit Breaker 48-65A EverLink 50kA

The Schneider Electric GV3P65 is a 3-pole thermomagnetic motor circuit breaker from the TeSys GV3 range, providing adjustable motor protection from 48 to 65 A with a breaking capacity of 50 kA at 400/415 V AC. It includes EverLink BTR screw terminals and is rated as an isolating device per IEC 60947-1.

Technical specifications:

• Commercial reference: GV3P65
• Manufacturer: Schneider Electric
• EAN:
• Series / range: TeSys Deca - TeSys GV3
• Number of poles: 3P
• Rated current [In]: 65 A
• Thermal protection adjustment range: 48-65 A per IEC 60947-4-1
• Overcurrent protection: 910 A
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Breaking capacity [Icu]: 100 kA at 230/240 V AC; 50 kA at 400/415 V and 440 V AC; 12 kA at 500 V AC; 6 kA at 690 V AC
• Motor power: 30 kW at 400/415 V; 45 kW at 500 V; 55 kW at 690 V AC
• Usage category: Category A (IEC 60947-2); AC-3 (IEC 60947-4-1)
• Network type: AC, 50/60 Hz
• Control type: Rotary handle
• Mounting: 35 mm DIN rail (snap-on) or panel fixing (3 x M4 screws)
• Connection: EverLink BTR screw terminal, tightening torque 5 N.m
• Dimensions (WxHxD): 55 x 132 x 136 mm
• Weight: 0.96 kg
• IP protection rating: IP20 per IEC 60529
• IK protection: IK09
• Operating temperature: -20...60 °C
• Storage temperature: -40...80 °C
• Operating altitude: up to 3000 m
• Mechanical / electrical durability: 50,000 cycles
• Phase loss sensitivity: Yes per IEC 60947-4-1
• Certifications: CCC, UL, CSA, EAC, ATEX, LROS, BV, ABS, DNV-GL, UKCA

Features and benefits:

• Thermomagnetic protection unit provides reliable overload and short-circuit protection for AC motors
• Adjustable thermal setting from 48 to 65 A enables precise calibration to individual motor ratings
• Breaking capacity of 50 kA at 400/415 V AC suits high fault-level industrial installations
• Integrated phase loss sensitivity guards motors against single-phasing damage per IEC 60947-4-1
• Suitable for isolation, eliminating the need for a separate isolating switch per IEC 60947-1

Applications:

• Direct-on-line motor starter panels for industrial machinery and manufacturing equipment
• Motor control centers handling loads up to 55 kW at 690 V AC
• HVAC systems, compressors, and pump motor protection
• Marine and offshore control panels where BV, ABS, and DNV-GL certification is required

Compliant with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1. Part of the Schneider Electric TeSys Deca range.
