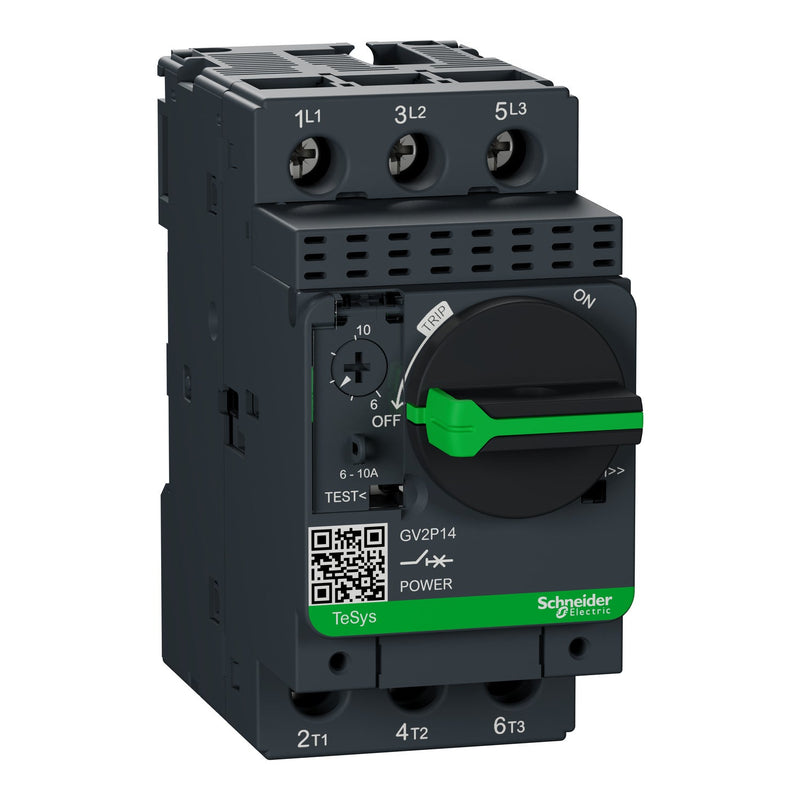

Schneider GV2P14 Motor Circuit Breaker, TeSys GV2, Thermal Magnetic 3P 6-10A

The Schneider Electric GV2P14 is a TeSys GV2 motor circuit breaker with thermal-magnetic protection, designed for motor protection in industrial applications. It provides a rated current of 10 A with an adjustable thermal protection range of 6-10 A, and delivers an exceptional breaking capacity of 100 kA Icu at 400/415 V AC.

Technical specifications:

• Commercial reference: GV2P14
• Manufacturer: Schneider Electric
• EAN:
• Series / range: TeSys GV2 (TeSys Deca product group)
• Product type: Motor circuit breaker
• Protection technology: Thermal-magnetic
• Number of poles: 3P
• Rated current [In]: 10 A
• Thermal protection adjustment range: 6-10 A (IEC 60947-4-1)
• Overcurrent protection: 149 A
• Network type: AC, 50/60 Hz
• Rated operational voltage [Ue]: 690 V AC 50/60 Hz
• Rated insulation voltage [Ui]: 690 V AC 50/60 Hz
• Rated impulse withstand voltage [Uimp]: 6 kV
• Breaking capacity [Icu]: 100 kA at 230/240 V AC; 100 kA at 400/415 V AC; 100 kA at 440 V AC; 50 kA at 500 V AC; 6 kA at 690 V AC
• Service breaking capacity [Ics]: 100% at 230/240 V, 400/415 V, 440 V, 500 V, 690 V AC
• Motor power: 3 kW at 400/415 V AC; 5 kW at 500 V AC; 5.5 kW at 690 V AC
• Control type: Rotary handle
• Usage category: Category A (IEC 60947-2), AC-3 and AC-3e (IEC 60947-4-1)
• Dissipation power per pole: 2.5 W
• Mechanical durability: 100,000 cycles
• Electrical durability: 100,000 cycles for AC-3 at 415 V In
• Tightening torque: 1.7 N.m (screw terminal block)
• Mounting: 35 mm symmetrical DIN rail (clip-on); panel mounting with 2 x M4 screws
• Handle mounting position: Horizontal or vertical
• Dimensions (WxHxD): 45 x 89 x 97 mm
• Weight: 331 g
• Color: Dark grey
• IP protection rating: IP20 (IEC 60529)
• IK protection rating: IK04
• Operating temperature: -20 to 60 °C
• Storage temperature: -40 to 80 °C
• Operating altitude: up to 2000 m
• Standards: EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
• Certifications: CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
• Warranty: 18 months

Features and benefits:

• High breaking capacity of 100 kA Icu at 400/415 V AC provides robust short-circuit protection in demanding industrial environments
• Adjustable thermal protection range (6-10 A) allows precise motor current calibration without additional components
• Phase loss sensitivity ensures motor protection against unbalanced or missing phase conditions
• Suitable for isolation duty, enabling use as a disconnector in motor circuits
• Flexible DIN rail or panel mounting with horizontal or vertical handle orientation suits diverse panel layouts
• Broad certification portfolio (UL, CSA, ATEX, DNV-GL, UKCA) supports global and marine/hazardous-area applications

Applications:

• Direct-on-line motor starter protection for motors up to 3 kW at 400 V in industrial control panels
• Motor protection in pump, fan, and compressor applications up to 5.5 kW at 690 V
• Machine control cabinets requiring combined overload and short-circuit protection in a single device
• Marine and offshore installations requiring DNV-GL or BV certified protective devices
• Hazardous area motor circuits requiring ATEX-certified circuit protection

Compliant with EN/IEC 60947-2 and EN/IEC 60947-4-1. Part of the Schneider Electric TeSys GV2 range.

Also known as: Schneider GV2P14, Schneider Electric GV2P14, TeSys GV2 motor protector, thermal-magnetic motor circuit breaker 6-10A.
